Screen Plate made of Stainless Steel
Similar products
Customers also bought
Viewed
Application area
Application in the food processing industry, in chemical engineering, gas and mineral oil industries as well as in sanitary and hospital engineering, wherever highest corrosion protection is required.
Product specification

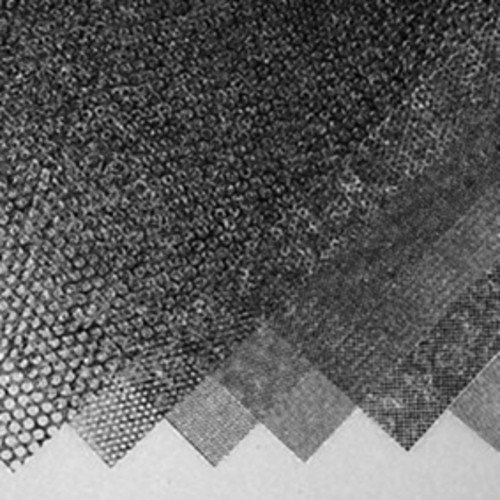

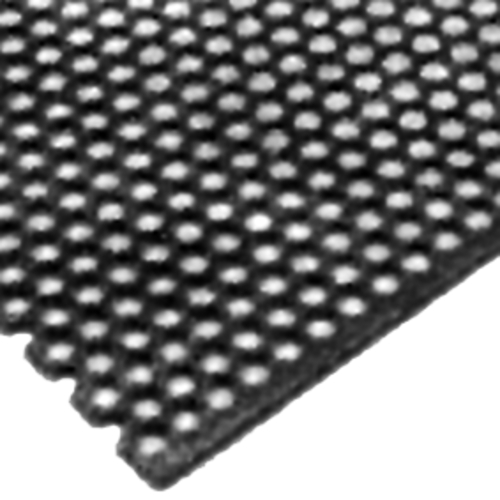

Perforated plate made of stainless steel
Closed edges
Austenitic, antimagnetic design (SS 316)
High corrosion resistance
| Item | Image | Design |
Offene Fläche %
|
Stärke mm
|
Abmessung mm
|
Einheit Stück
|
Price Euro* | Buy |
|---|
Item
|
|
Design
|
Offene Fläche %
|
Stärke mm
|
Abmessung mm
|
Einheit Stück
|
Price Euro* |
Buy
|
|---|---|---|---|---|---|---|---|---|
| 300618 |
|

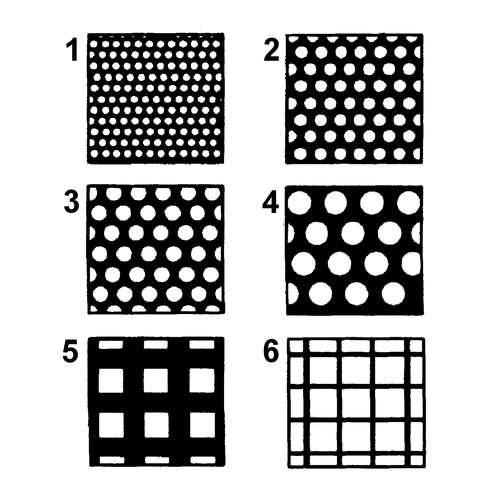

1: 60°, Ø 2,0 mm | 47 | 0,55 | 500 x 500 | 1 | 179.00 | |
| 300619 |
|
2: 60°, Ø 3,0 mm | 33 | 0,55 | 500 x 500 | 1 | 179.00 | |
| 300620 |
|
3: 60°, Ø 4,8 mm | 50 | 0,55 | 500 x 500 | 1 | 179.00 | |
| 300621 |
|
4: 60°, Ø 6,4 mm | 43 | 0,55 | 500 x 500 | 1 | 179.00 | |
| 300622 |
|
5: quadratisch, 4,7 x 4,7 mm | 35 | 0,55 | 500 x 500 | 1 | 179.00 | |
| 300623 |
|
6: quadratisch, 6 x 6 mm | 62 | 0,55 | 500 x 500 | 1 | 179.00 | |
| 300624 |
|
7: versetzt, 6 x 6 mm | 52 | 0,55 | 500 x 500 | 1 | 179.00 |
