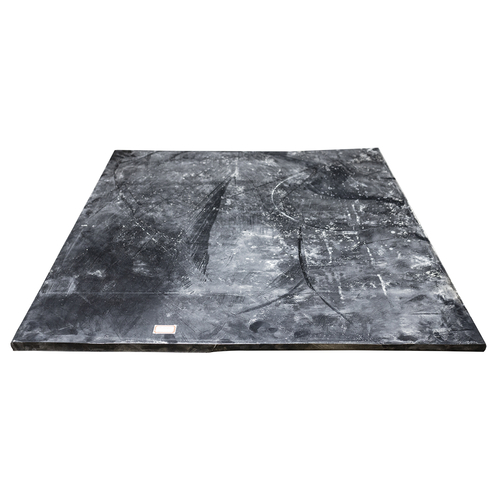

CR/SBR Plate - Shore 65°

CR/SBR Plate - Shore 65°
CR/SBR Plate - Shore 65°


Product specification Good elastic behavior Average mechanical stability Good abrasion... more

Product specification

Good elastic behavior

Average mechanical stability

Good abrasion resistance

Good thermal resistance

Limited resistance to weather

High flame resistance

Good resistance to diluted acids and alkalis, limited resistance to mineral oils

Poor resistance to solvents and steam

Chemical features:

CR is a all-round synthetic rubber basing on polychloroprene.

Chloroprene rubber is vulcanized in different systems influencing parameters such as compression set, oil resistance, thermal resistance, and tendency to crystallization.

Use in contact with mineral oils possible, although swelling is stronger compared to NBR, depending on the respective compound specification.

Less suitable for outdoor applications.

Technical specification

Material: CR (chloroprene rubber)

Additive components: SBR (styrene-butadiene rubber)

Colour: black

Shore hardness A: 65° ±5° (DIN 53505)

Temperature range: -30 to +70 °C

Density: 1.4 g/cm3

Elongation at break: 200 %

Tearing strength: 6 MPa

Volume resistivity: >109 Ohm x cm

Tolerance: DIN ISO 3302-1 E2

No additional information available.
