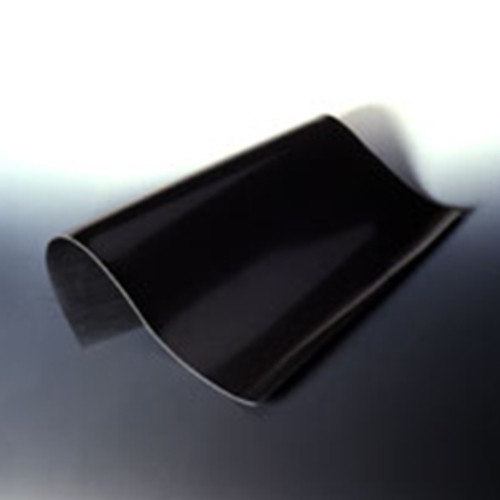

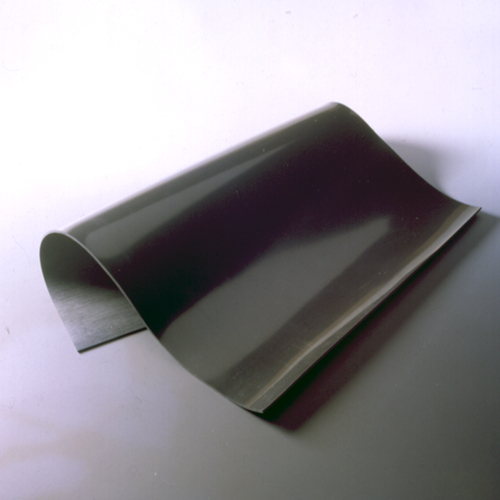

EPDM Plate - Shore 80°

Preview: EPDM Plate - Shore 80° Preview: EPDM Plate - Shore 80°
EPDM Plate - Shore 80°
EPDM Plate - Shore 80°


Description General Information
Description
Product specification Very good resistance to weather Good resistance to aging Very good... more
Close menu

Product specification

Very good resistance to weather

Good resistance to aging

Very good cold and thermal resistance

Medium elongation at break

Good dielectrical properties

Good resistance to acids, alkalis, hot water, hot steam, glycols, and polar solutions

Poor resistance to mineral oils and fuels

Chemical features:

EPDM is a sulfur vulcanized synthetic rubber containing diene components. The terpolymer EPDM is of outstanding stability to oxygen and ozone. Its chemical properties cause its excellent resistance to light, aging, and weather.

Technical specification

Material: EPDM (ethylene-propylene-diene rubber and terpolymer rubber resp.)

Colour: black

Shore hardness A: 80° ±5° (DIN 53505)

Temperature range: -40 to +100 °C

Specific features: sulfur vulcanized

Density: 1.40 g/cm3

Elongation at break: 300 %

Tearing strength: 5 MPa

Tolerance: DIN ISO 3302-1 E2

General Information
more
Close menu
No additional information available.
