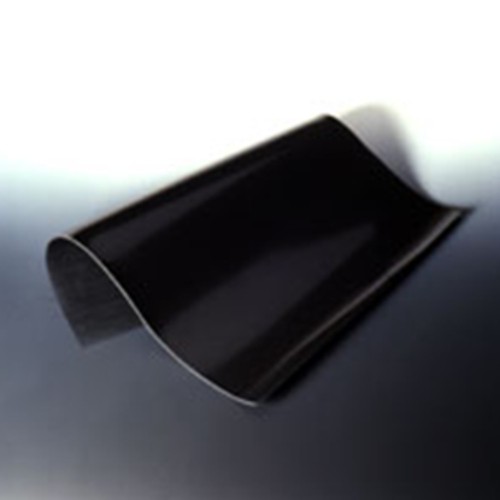

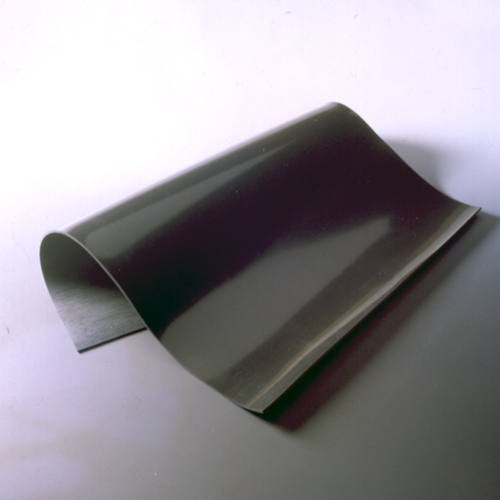

NBR Plate - Shore 65°

Preview: NBR Plate - Shore 65° Preview: NBR Plate - Shore 65°
NBR Plate - Shore 65°
NBR Plate - Shore 65°


Description General Information
Description
Product specification Very good abrasion resistance Outstanding rubber-elastic properties... more
Close menu

Product specification

Very good abrasion resistance

Outstanding rubber-elastic properties also at extreme bending radiuses

Good thermal resistance

Good resistance to aging and weather

Very good resistance to mineral oils, vegetable and animal oils, silicone as well as diluted acids and alkalis at room temperature

Insufficient resistance to solvents and flame-resistant hydraulic fluids

Good resistance to super petrol

Chemical features:

Nitrile rubber is a copolymer basing on butadiene and acrylonitrile. Resistance to fuels and mineral oils improves with increasing acrylonitrile component, but at the same time elastic behavior, cold flexibility, and gas tightness deteriorate.

Technical specification

Material: NBR (butadiene-acrylonitrile rubber)

Colour: black

Shore hardness A: 65° ±5° (DIN 53505)

Temperature range: -30 to +120 °C

Density: 1.48 g/cm3

Elongation at break: 350 %

Tearing strength: 7 MPa

Compression set: <30 % at +100 °C / 70 h

Specific features: sulfur-crosslinked

General Information
more
Close menu
No additional information available.
