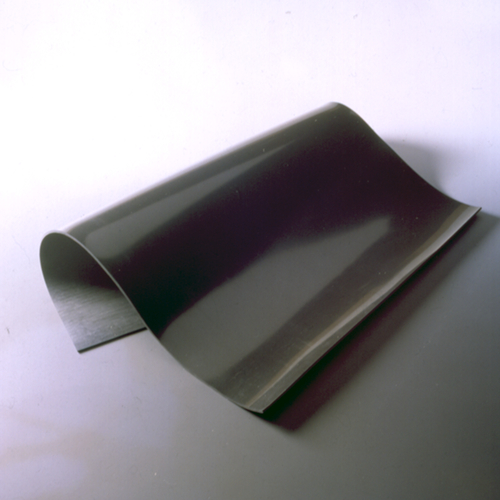

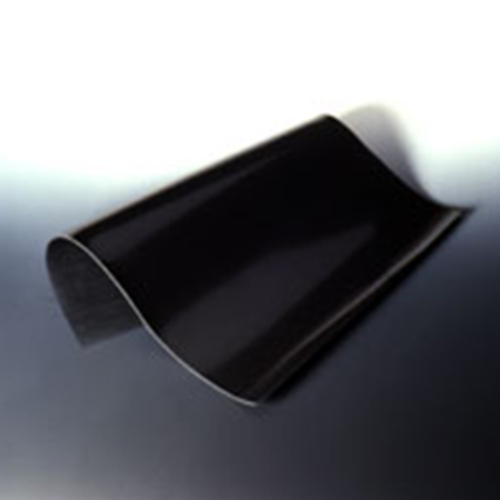

NBR/SBR Plate - Shore 50°
Product specification
Very good abrasion resistance
Outstanding rubber-elastic properties also at extreme bending radiuses
Good thermal resistance
Good resistance to aging and weather
Average mechanical stability
Very good resistance to mineral oils, vegetable and animal oils, silicone as well as diluted acids and alkalis at room temperature
Insufficient resistance to solvents, flame-resistant hydraulic fluids, and fuels.
Chemical features:
Nitrile rubber is a copolymer basing on butadiene and acrylonitrile. Resistance to fuels and mineral oils improves with increasing acrylonitrile component, but at the same time elastic behavior, cold flexibility, and gas tightness deteriorate.
Technical specification
Material: NBR (butadiene-acrylonitrile rubber)
Additive components: SBR (styrene-butadiene rubber)
Colour: black
Shore hardness A: 50° ±5° (DIN 53505)
Temperature range: -35 to +70 °C
Density: 1.3 g/cm3
Elongation at break: 200 %
Tearing strength: 4 MPa
Compression set: 40 % at +70 °C / 22 h
Tolerance: DIN ISO 3302-1 E2
Item | Image |
Thickness mm
|
Abmessung mm
|
Einheit Stück
|
Price Euro* | Buy |
---|
Item
|
|
Thickness mm
|
Abmessung mm
|
Einheit Stück
|
Price Euro* |
Buy
|
---|---|---|---|---|---|---|
19650 |
|
1 | 600 x 600 | 1 | 73.00 | |
19651 |
|
1,5 | 600 x 600 | 1 | 76.00 | |
19652 |
|
2 | 600 x 600 | 1 | 85.00 | |
19653 |
|
2,5 | 600 x 600 | 1 | 93.00 | |
19654 |
|
3 | 600 x 600 | 1 | 104.00 | |
19655 |
|
4 | 600 x 600 | 1 | 124.00 | |
19656 |
|
5 | 600 x 600 | 1 | 142.00 | |
19657 |
|
6 | 600 x 600 | 1 | 162.00 | |
19658 |
|
1 | 1200 x 1200 | 1 | 145.00 | |
19659 |
|
1,5 | 1200 x 1200 | 1 | 135.00 | |
19660 |
|
2 | 1200 x 1200 | 1 | 158.00 | |
19661 |
|
2,5 | 1200 x 1200 | 1 | 166.00 | |
19662 |
|
3 | 1200 x 1200 | 1 | 178.00 | |
19663 |
|
4 | 1200 x 1200 | 1 | 226.00 | |
19664 |
|
5 | 1200 x 1200 | 1 | 257.00 | |
19665 |
|
6 | 1200 x 1200 | 1 | 293.00 |
