Foam Rubber Rectangular Profile made of EPDM
Product specification
Very good resistance to weather
Good elastic behavior
Good resistance to heat, cold, and aging
Good chemical resistance to hot water and steam, glycol brake fluids, many acids and alkalis as well as polar solvents.
Technical specification
Material: EPDM (ethylene-propylene-diene rubber)
Colour: grey (similar to RAL 7035)
Shore hardness A: 15° ±3° (DIN 53505)
Temperature range: -30 to +80 °C (hot air); -30 to +100 °C (hot water/steam)
Density: approx. 0.45 g/cm3
Tolerance: DIN ISO 3302-1 E3
Design: foamed, all over with closed skin, open cured
General Information
Foam rubber has a mixed cell structure with mostly open cells and a dense outer skin. It is used in many ways as a sealing material in the form of round cords, square profiles, plates or moldings.
Since open-celled, these materials can therefore absorb liquids.
The surface of sponge rubber profiles and seals is better protected from external influences than with cellular rubber due to the dense, robust and elastic outer skin.
However, if the surface is damaged, then the foam rubber seal with the open-cell structure, through the capillary action with aqueous medium can soak.
Foam rubber and cellular rubber are made from the same raw materials, often EPDM, CR, NR, NBR or SBR. Due to different manufacturing processes, however, the material structure of sponge rubber and cellular rubber differs fundamentally.

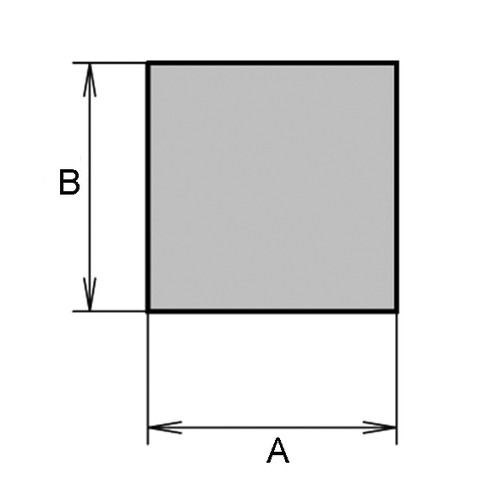

Item | Image |
A mm
|
B mm
|
Weight g/m
|
Einheit m
|
Price Euro* | Buy |
---|
Item
|
|
A mm
|
B mm
|
Weight g/m
|
Einheit m
|
Price Euro* |
Buy
|
---|---|---|---|---|---|---|---|
13685 |
|
5 | 5 | 15 | 5 | 50.00 | |
13686 |
|
5 | 5 | 15 | 10 | 74.00 | |
13687 |
|
6 | 6 | 20 | 5 | 53.00 | |
13688 |
|
6 | 6 | 20 | 10 | 88.00 | |
13689 |
|
8 | 8 | 32 | 5 | 58.00 | |
13690 |
|
8 | 8 | 32 | 10 | 107.00 | |
13691 |
|
10 | 10 | 50 | 5 | 74.00 | |
13692 |
|
10 | 10 | 50 | 10 | 135.00 | |
13693 |
|
12 | 12 | 75 | 5 | 97.00 | |
13694 |
|
12 | 12 | 75 | 10 | 162.00 | |
13695 |
|
15 | 15 | 125 | 5 | 141.00 | |
13696 |
|
15 | 15 | 125 | 10 | 261.00 | |
13697 |
|
18 | 18 | 195 | 3 | 102.00 | |
13698 |
|
18 | 18 | 195 | 5 | 160.00 | |
13699 |
|
20 | 20 | 240 | 3 | 113.00 | |
13700 |
|
20 | 20 | 240 | 5 | 168.00 | |
13701 |
|
25 | 25 | 435 | 3 | 178.00 | |
13702 |
|
25 | 25 | 435 | 5 | 271.00 | |
13705 |
|
8 | 2 | 9 | 5 | 42.00 | |
13706 |
|
8 | 2 | 9 | 10 | 72.00 | |
13707 |
|
20 | 2 | 20 | 5 | 53.00 | |
13708 |
|
20 | 2 | 20 | 10 | 94.00 | |
13711 |
|
10 | 3 | 17 | 5 | 58.00 | |
13712 |
|
10 | 3 | 17 | 10 | 105.00 | |
13713 |
|
15 | 3 | 27 | 5 | 61.00 |
