High-Tech Foam Rubber Rectangular Profile made of Silicone
Application area
Sealing technology, insulation technology, shock absorbence, electronics
Product specification
Very good elastic behavior
Outstanding resistance to cold
Excellent resistance to heat and hot air
Very good resistance to ozone, aging, and weather
Dielectrical (non-conducting) properties
Very good physiological properties
Antiadhesive surface
High permeability to gases
Technical specification
Material: silicone (silicone rubber)
Colour: light beige or white
Shore hardness A: 15° ±5° (DIN 53505)
Temperature range: -50 to +200 °C
Density: approx. 0.5 g/cm3
Tolerance: DIN ISO 3302-1 E3
Design: foamed, with skin on both sides
General Information
Foam rubber has a mixed cell structure with mostly open cells and a dense outer skin. It is used in many ways as a sealing material in the form of round cords, square profiles, plates or moldings.
Since open-celled, these materials can therefore absorb liquids.
The surface of sponge rubber profiles and seals is better protected from external influences than with cellular rubber due to the dense, robust and elastic outer skin.
However, if the surface is damaged, then the foam rubber seal with the open-cell structure, through the capillary action with aqueous medium can soak.
Foam rubber and cellular rubber are made from the same raw materials, often EPDM, CR, NR, NBR or SBR. Due to different manufacturing processes, however, the material structure of sponge rubber and cellular rubber differs fundamentally.

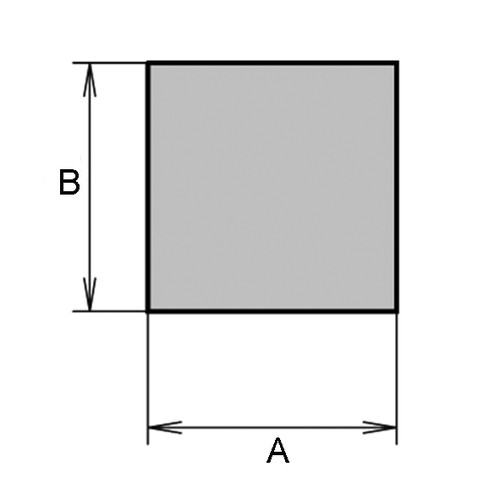

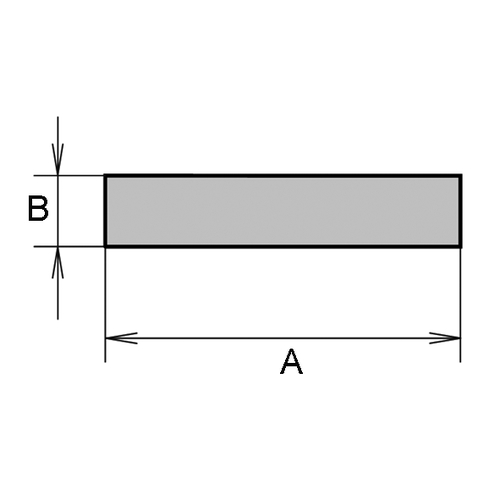

Item | Image |
A mm
|
B mm
| Colour |
Einheit m
|
Price Euro* | Buy |
---|
Item
|
|
A mm
|
B mm
|
Colour
|
Einheit m
|
Price Euro* |
Buy
|
---|---|---|---|---|---|---|---|
13823 |
|
20 | 3 | beige | 5 | 127.00 | |
13824 |
|
20 | 3 | beige | 10 | 231.00 | |
13819 |
|
5 | 5 | beige | 5 | 83.00 | |
13820 |
|
5 | 5 | beige | 10 | 143.00 | |
340578 |
|
5 | 5 | weiß | 5 | 63.00 | |
340579 |
|
5 | 5 | weiß | 10 | 116.00 | |
13825 |
|
10 | 5 | beige | 5 | 107.00 | |
13826 |
|
10 | 5 | beige | 10 | 195.00 | |
13827 |
|
10 | 6 | beige | 5 | 127.00 | |
13828 |
|
10 | 6 | beige | 10 | 231.00 | |
13829 |
|
15 | 6 | beige | 3 | 107.00 | |
13830 |
|
15 | 6 | beige | 5 | 160.00 | |
13831 |
|
20 | 6 | beige | 3 | 141.00 | |
13832 |
|
20 | 6 | beige | 5 | 211.00 | |
340580 |
|
6 | 8 | weiß | 5 | 71.00 | |
340581 |
|
6 | 8 | weiß | 10 | 122.00 | |
340582 |
|
3 | 10 | weiß | 5 | 71.00 | |
340583 |
|
3 | 10 | weiß | 10 | 122.00 | |
340584 |
|
5 | 10 | weiß | 5 | 75.00 | |
340585 |
|
5 | 10 | weiß | 10 | 129.00 | |
13821 |
|
10 | 10 | beige | 3 | 130.00 | |
13822 |
|
10 | 10 | beige | 5 | 195.00 | |
340586 |
|
10 | 10 | weiß | 5 | 73.00 | |
340587 |
|
10 | 10 | weiß | 10 | 129.00 | |
340588 |
|
12 | 12 | weiß | 5 | 116.00 |
