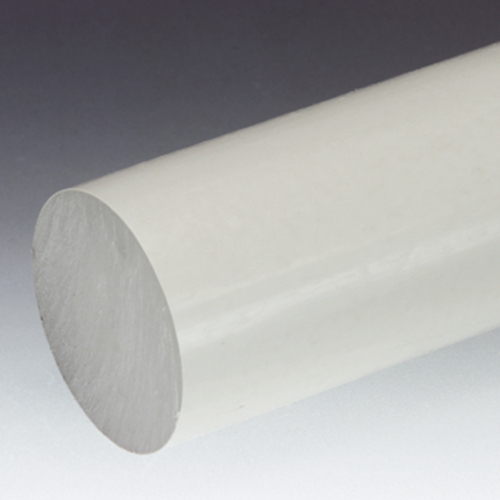

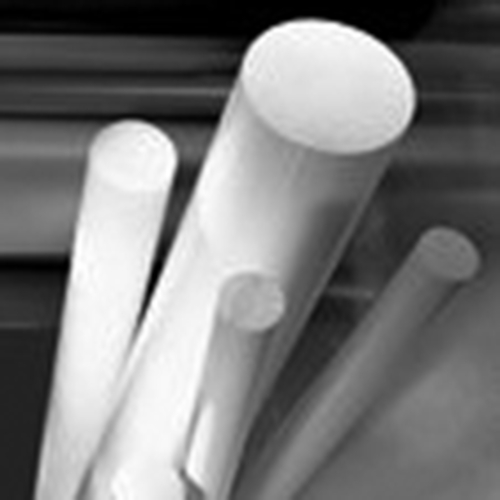

Solid Rod made of PP - pebble grey
Application area
Heavily loaded sliding elements, pump elements and rollers, chemical pump parts, filter housings, apparatus construction
Product specification
Good temperature resistance
Good chemical resistance
Resistant to hydrolysis
Very good dielectrical properties
Not usable for slid functions
Not suitable for use at low temperatures (embrittling at low temperatures)
Not resistant to weather
Technical specification
Material: PP (polypropylene)
Design: extruded
Colour: pebble grey (RAL 7032)
Density: 0.91 g/m3 (ISO 1183)
Temperature range: 0 to +100 °C, for a short time +110 °C
Thermal conductivity: 0.22 W/m * K (DIN 52612)
Flammability rating: UL 94 HB
Melting point: +165 °C (ISO 3146)
Tensile strength: 30 N/mm2 (ISO 527-2)
Elongation at break: >50 % (ISO 527-2)
Tensile modulus: 1,300 N/mm2 (ISO 527-2)
Notch impact strength: 9 KJ/m2 (ISO 179/1eA)
Volume resistivity: >1012 Ohm x m (IEC 60093)
Surface resistivity: 1013 Ohm (IEC 60093)
Regulations: EG 1935/2004; EU 10/2011
Item | Image |
Outside Ø mm
|
Toleranz mm
|
Länge mm
|
Einheit Stück
|
Price Euro* | Buy |
---|
Item
|
|
Outside Ø mm
|
Toleranz mm
|
Länge mm
|
Einheit Stück
|
Price Euro* |
Buy
|
---|---|---|---|---|---|---|---|
302065 |
|
10 | +0,6 / +0,1 | 250 | 2 | 20.00 | |
302066 |
|
10 | +0,6 / +0,1 | 500 | 2 | 33.00 | |
302067 |
|
10 | +0,6 / +0,1 | 1.000 | 2 | 51.00 | |
302068 |
|
15 | +0,8 / +0,2 | 250 | 1 | 20.00 | |
302069 |
|
15 | +0,8 / +0,2 | 500 | 1 | 33.00 | |
302070 |
|
15 | +0,8 / +0,2 | 1.000 | 1 | 52.00 | |
302071 |
|
20 | +1,0 / +0,2 | 250 | 1 | 32.00 | |
302072 |
|
20 | +1,0 / +0,2 | 500 | 1 | 55.00 | |
302073 |
|
20 | +1,0 / +0,2 | 1.000 | 1 | 89.00 | |
302074 |
|
25 | +1,1 / +0,2 | 250 | 1 | 38.00 | |
302075 |
|
25 | +1,1 / +0,2 | 500 | 1 | 66.00 | |
302076 |
|
25 | +1,1 / +0,2 | 1.000 | 1 | 96.00 | |
302077 |
|
30 | +1,2 / +0,2 | 250 | 1 | 54.00 | |
302078 |
|
30 | +1,2 / +0,2 | 500 | 1 | 88.00 | |
302079 |
|
30 | +1,2 / +0,2 | 1.000 | 1 | 130.00 | |
302080 |
|
40 | +1,5 / +0,2 | 250 | 1 | 68.00 | |
302081 |
|
40 | +1,5 / +0,2 | 500 | 1 | 107.00 | |
302082 |
|
40 | +1,5 / +0,2 | 1.000 | 1 | 185.00 | |
302083 |
|
50 | +2,0 / +0,3 | 250 | 1 | 74.00 | |
302084 |
|
50 | +2,0 / +0,3 | 500 | 1 | 124.00 | |
302085 |
|
50 | +2,0 / +0,3 | 1.000 | 1 | 203.00 | |
302086 |
|
60 | +2,3 / +0,3 | 250 | 1 | 81.00 | |
302087 |
|
60 | +2,3 / +0,3 | 500 | 1 | 129.00 | |
302088 |
|
70 | +2,5 / +0,3 | 250 | 1 | 88.00 | |
302089 |
|
70 | +2,5 / +0,3 | 500 | 1 | 144.00 |
