Product specification

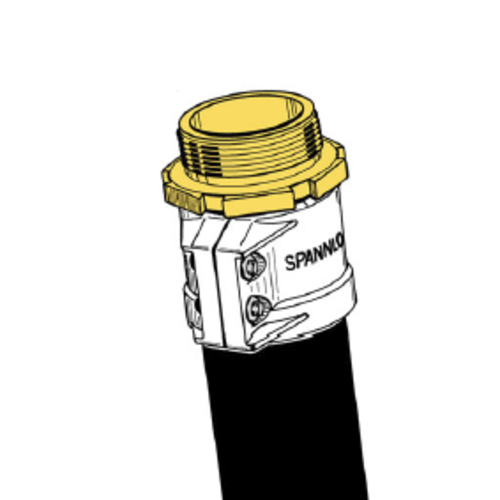

The male tubing screwed fittings have reusable grip jaws made of compression moulded aluminium. The screws and nuts are zinc-plated and chromatized.
The tubing connections with external thread are made of compression moulded brass or V4A (1.4571).
Nominal pressure up to 25 bar at +20 °C.
| Item | Image |
Tubing inside Ø mm
|
Schlauch Außen-Ø mm
| Außengewinde | Werkstoff |
Einheit Stück
|
Price Euro* | Buy |
|---|
Item
|
|
Tubing inside Ø mm
|
Schlauch Außen-Ø mm
|
Außengewinde
|
Werkstoff
|
Einheit Stück
|
Price Euro* |
Buy
|
|---|---|---|---|---|---|---|---|---|
| 83228 |
|
25 | 36 - 39 | R 1" | Messing | 1 | 42.00 | |
| 83229 |
|
38 | 50 - 53 | R 1 1/2" | Messing | 1 | 53.00 | |
| 83230 |
|
50 | 63 - 67 | R 2" | Messing | 1 | 67.00 | |
| 83231 |
|
63 | 78 - 82 | R 2 1/2" | Messing | 1 | 91.00 | |
| 83232 |
|
75 | 88 - 93 | R 3" | Messing | 1 | 91.00 | |
| 83233 |
|
80 | 94 - 97 | R 3" | Messing | 1 | 125.00 | |
| 83234 |
|
100 | 114 - 119 | R 4" | Messing | 1 | 206.00 | |
| 83235 |
|
25 | 36 - 39 | R 1" | Edelstahl | 1 | 102.00 | |
| 83236 |
|
50 | 63 - 67 | R 2" | Edelstahl | 1 | 135.00 | |
| 83237 |
|
75 | 88 - 93 | R 3" | Edelstahl | 1 | 201.00 | |
| 83238 |
|
100 | 114 - 119 | R 4" | Edelstahl | 1 | 482.00 |
