Product specification

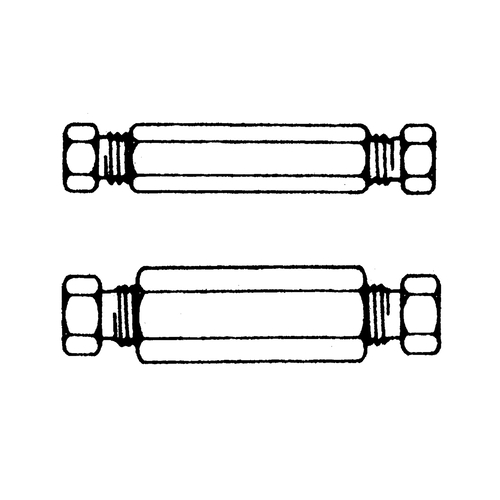

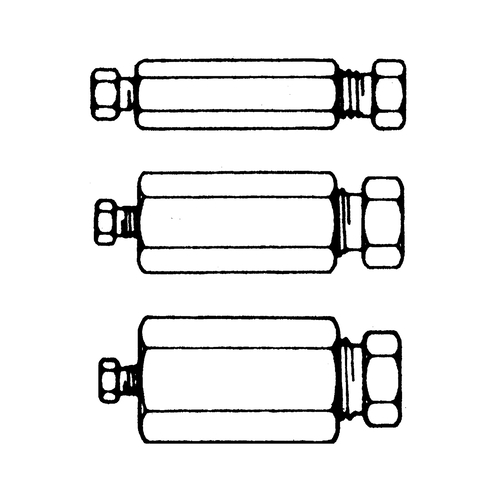

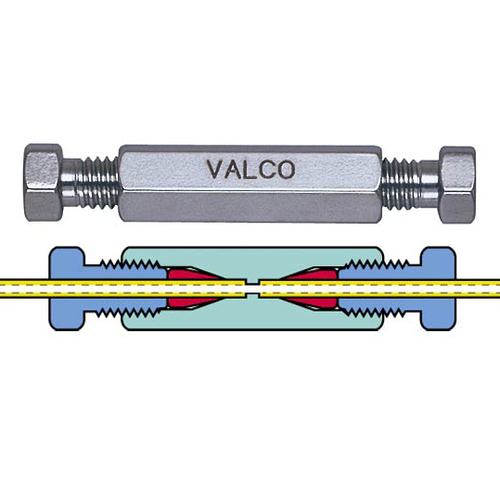

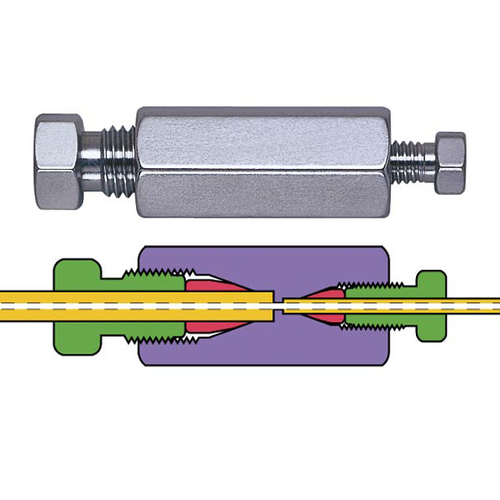

Screw-in joint made of stainless steel for HPLC and other applications, for metal capillaries of equal or different diameters with uniform bore, including ferrules and female screws. Extremely low dead volumes.
| Item | Image |
Pipe outside Ø (A) inch
|
Rohr Außen-Ø (B) Zoll
|
NW mm
|
Einheit Stück
|
Price Euro* | Buy |
|---|
Item
|
|
Pipe outside Ø (A) inch
|
Rohr Außen-Ø (B) Zoll
|
NW mm
|
Einheit Stück
|
Price Euro* |
Buy
|
|---|---|---|---|---|---|---|---|
| 83550 |
|
1/32" | 1/32" | 0,25 | 1 | 135.00 | |
| 83551 |
|
1/32" | 1/32" | 0,8 | 1 | 135.00 | |
| 83552 |
|
1/16" | 1/32" | 0,25 | 1 | 135.00 | |
| 83553 |
|
1/16" | 1/32" | 0,8 | 1 | 135.00 | |
| 83554 |
|
1/16" | 1/16" | 0,75 | 1 | 146.00 | |
| 83555 |
|
1/16" | 1/16" | 0,15 | 1 | 100.00 | |
| 83556 |
|
1/16" | 1/16" | 1,6 | 1 | 146.00 | |
| 83557 |
|
1/8" | 1/32" | 0,25 | 1 | 135.00 | |
| 83558 |
|
1/8" | 1/32" | 0,8 | 1 | 135.00 | |
| 83559 |
|
1/8" | 1/16" | 0,75 | 1 | 146.00 | |
| 83560 |
|
1/8" | 1/16" | 0,25 | 1 | 100.00 | |
| 83561 |
|
1/8" | 1/16" | 1,6 | 1 | 146.00 | |
| 83562 |
|
1/8" | 1/8" | 0,75 | 1 | 123.00 | |
| 83563 |
|
1/8" | 1/8" | 2 | 1 | 146.00 | |
| 83564 |
|
1/8" | 1/8" | 3,2 | 1 | 146.00 | |
| 83565 |
|
1/4" | 1/16" | 0,75 | 1 | 146.00 | |
| 83566 |
|
1/4" | 1/16" | 0,25 | 1 | 100.00 | |
| 83567 |
|
1/4" | 1/16" | 1,6 | 1 | 146.00 | |
| 83568 |
|
1/4" | 1/8" | 0,75 | 1 | 123.00 | |
| 83569 |
|
1/4" | 1/8" | 3,2 | 1 | 123.00 | |
| 83570 |
|
1/4" | 1/4" | 0,75 | 1 | 123.00 | |
| 83571 |
|
1/4" | 1/4" | 4,6 | 1 | 146.00 | |
| 83572 |
|
1/4" | 1/4" | 6,4 | 1 | 146.00 | |
| 83573 |
|
3/8" | 1/16" | 0,75 | 1 | 100.00 | |
| 83574 |
|
3/8" | 1/16" | 1,6 | 1 | 100.00 |
