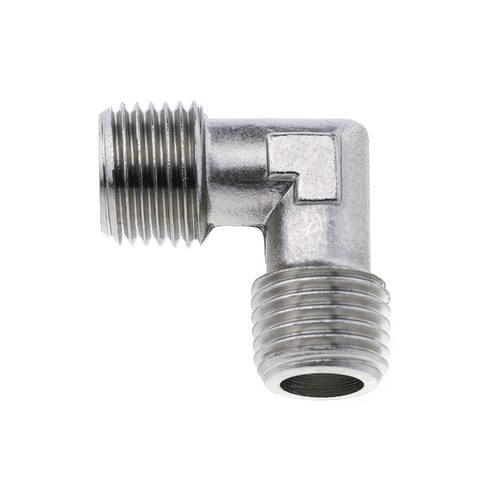

Elbow Screwed Fitting made of Brass, Nickel-Plated - external thread
Product specification L-shape, R-external thread (conical) on both sides more
Product specification
L-shape, R-external thread (conical) on both sides
General Information Use for fluid technology, compressed air technology, automation,... more
General Information
Use for fluid technology, compressed air technology, automation, measurement and control technology, apparatus engineering and machine engineering.
Material: brass MS 58 (2.0401)
Material composition: CuZn 39 Pb3 - material 2.0401
Design: nickel-plated
Max. operating pressure: 8 bar at +20°C
Thread types:
a. Withworth thread according to ISO 228, referred to as G-thread
b. Withworth thread according to DIN 2999, referred to as R-thread
Item | Image | External thread |
Gewindelänge mm
|
SW mm
|
Einheit Stück
|
Price Euro* | Buy |
---|
Item
|
|
External thread
|
Gewindelänge mm
|
SW mm
|
Einheit Stück
|
Price Euro* |
Buy
|
---|---|---|---|---|---|---|---|
331117 |
|
R 1/8" | 8 | 10 | 10 | 50.00 | |
331118 |
|
R 1/4" | 11 | 11 | 10 | 69.00 | |
331119 |
|
R 3/8" | 12 | 13 | 10 | 99.00 | |
331120 |
|
R 1/2" | 14 | 17 | 10 | 148.00 |
