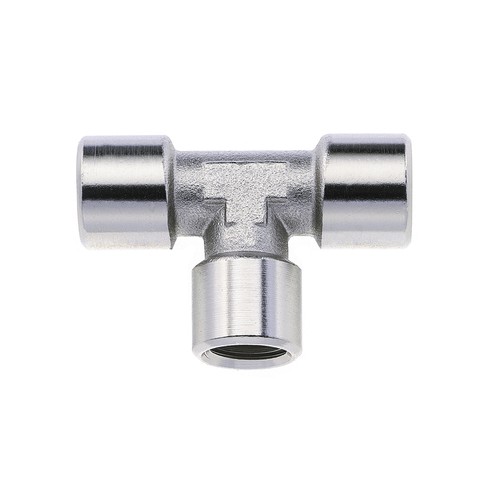

T-Shaped Screwed Fitting made of Brass, Nickel-Plated - internal thread
![T-Shaped Screwed Fitting made of Brass, Nickel-Plated - internal thread](https://www.rct-online.de/media/image/20/e6/65/G331137_a1_600x600.jpg)
Product specification T-shape, G-internal thread (cylindrical) on all three sides more
Product specification
T-shape, G-internal thread (cylindrical) on all three sides
General Information Use for fluid technology, compressed air technology, automation,... more
General Information
Use for fluid technology, compressed air technology, automation, measurement and control technology, apparatus engineering and machine engineering.
Material: brass MS 58 (2.0401)
Material composition: CuZn 39 Pb3 - material 2.0401
Design: nickel-plated
Max. operating pressure: 8 bar at +20°C
Thread types:
a. Withworth thread according to ISO 228, referred to as G-thread
b. Withworth thread according to DIN 2999, referred to as R-thread
Item | Image | Internal thread |
Gewindelänge mm
|
SW mm
|
Einheit Stück
|
Price Euro* |
Buy |
---|---|---|---|---|---|---|---|
331137 |
|
G 1/8" | 8 | 11 | 10 | 67.00 | |
331138 |
|
G 1/4" | 11 | 13 | 10 | 101.00 | |
331139 |
|
G 3/8" | 12 | 17 | 5 | 75.00 | |
331140 |
|
G 1/2" | 14 | 21 | 5 | 105.00 |
