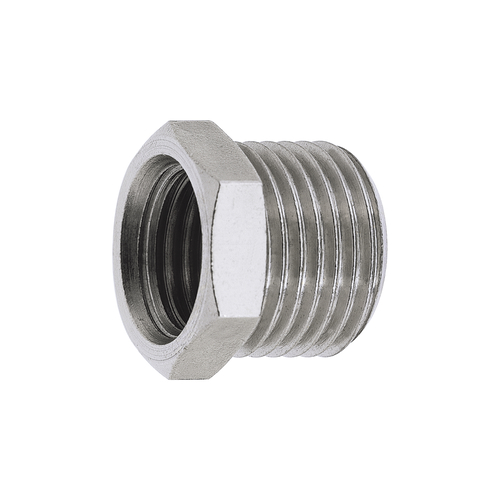

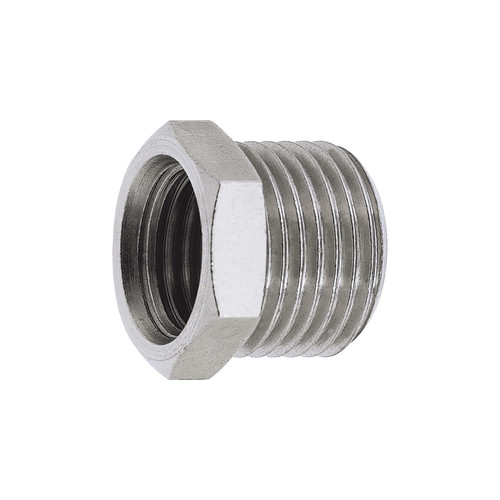

Reducing Nipple made of Brass, Nickel-Plated
Product specification Reducing nipple, different G-internal and external thread (cylindrical) more
Product specification
Reducing nipple, different G-internal and external thread (cylindrical)
General Information Use for fluid technology, compressed air technology, automation,... more
General Information
Use for fluid technology, compressed air technology, automation, measurement and control technology, apparatus engineering and machine engineering.
Material: brass MS 58 (2.0401)
Material composition: CuZn 39 Pb3 - material 2.0401
Design: nickel-plated
Max. operating pressure: 8 bar at +20°C
Thread types:
a. Withworth thread according to ISO 228, referred to as G-thread
b. Withworth thread according to DIN 2999, referred to as R-thread

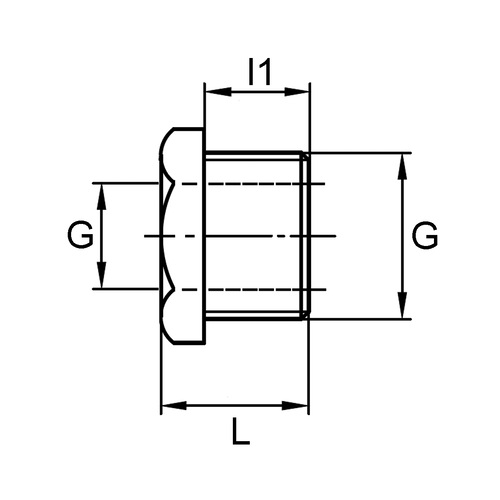

Item | Image | Internal thread | Außengewinde |
l1 mm
|
L mm
|
SW mm
|
Einheit Stück
|
Price Euro* | Buy |
---|
Item
|
|
Internal thread
|
Außengewinde
|
l1 mm
|
L mm
|
SW mm
|
Einheit Stück
|
Price Euro* |
Buy
|
---|---|---|---|---|---|---|---|---|---|
331175 |
|
G 1/8" | G 1/4" | 8 | 13 | 17 | 10 | 30.00 | |
331176 |
|
G 1/4" | G 3/8" | 9 | 14 | 19 | 10 | 39.00 | |
331177 |
|
G 3/8" | G 1/2" | 10 | 15,5 | 24 | 10 | 56.00 | |
331178 |
|
G 1/2" | G 3/4" | 12 | 17,5 | 30 | 10 | 93.00 |
