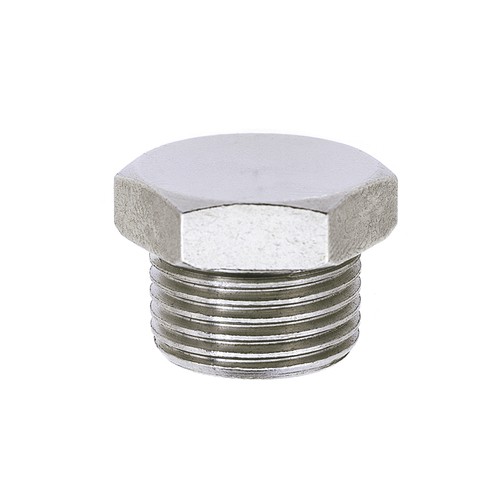

Locking Screw made of Brass, Nickel-Plated

Product specification Screw caps with G-external thread (cylindrical) more

Product specification

Screw caps with G-external thread (cylindrical)

General Information Use for fluid technology, compressed air technology, automation,... more

General Information

Use for fluid technology, compressed air technology, automation, measurement and control technology, apparatus engineering and machine engineering.

Material: brass MS 58 (2.0401)

Material composition: CuZn 39 Pb3 - material 2.0401

Design: nickel-plated

Max. operating pressure: 8 bar at +20°C

Thread types:

a. Withworth thread according to ISO 228, referred to as G-thread

b. Withworth thread according to DIN 2999, referred to as R-thread

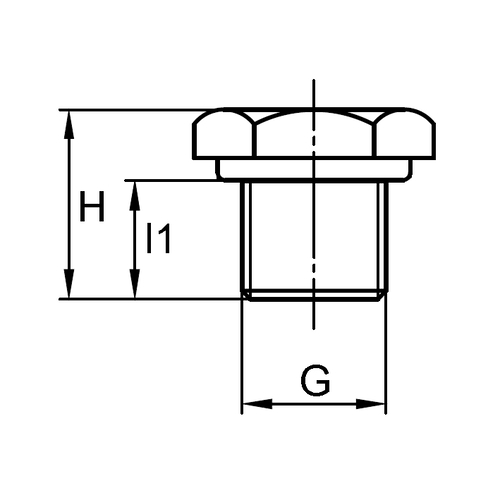

Item Image External thread H
mm
l1
mm
SW
mm
Einheit
Stück
Price
Euro*
Buy
331197
G 1/8" 10,5 6 14 10 28.00
331198
G 1/4" 13 8 17 10 37.00
331199
G 3/8" 14 9 19 10 41.00
331200
G 1/2" 15,5 10 24 10 60.00
331201
G 3/4" 17,5 12 30 10 84.00
