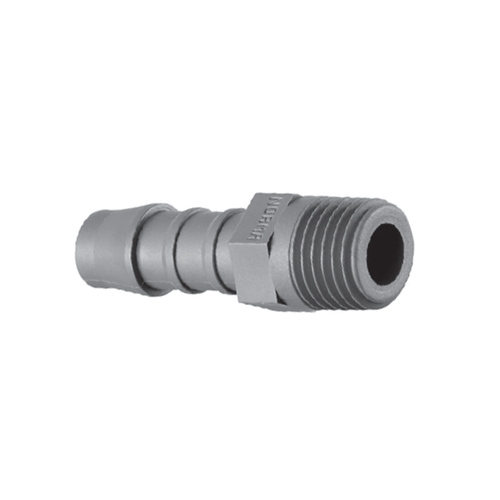

Straight Barb Connector with Male Thread made of PA
General Information Material: PA 6 (polyamide 6) Temperature range: -10 to +70... more
General Information
Material: PA 6 (polyamide 6)
Temperature range: -10 to +70 °C
Max. operating pressure: 8 bar at +20 °C
Tensile strength: 78 N/mm2 (DIN 53455)
Elongation at break: >50 % (DIN 53455)
Elastic modulus: 3,200 MPa (ISO 527)
Impact toughness: without break (DIN 53453)
Notch impact strength (Charpy): 3 kJ/m2 (ISO 179)
Ball pressure hardness: 160 N/mm2 (ISO 2039-1)
Item | Image |
Tubing inside Ø mm
| Außengewinde |
NW mm
|
L mm
|
SW mm
|
Einheit Stück
|
Price Euro* | Buy |
---|
Item
|
|
Tubing inside Ø mm
|
Außengewinde
|
NW mm
|
L mm
|
SW mm
|
Einheit Stück
|
Price Euro* |
Buy
|
---|---|---|---|---|---|---|---|---|---|
26421 |
|
4 | M8 x 1,25 | 2,5 | 27 | 10 | 10 | 28.00 | |
26422 |
|
4 | M8 x 1 | 2,5 | 27 | 10 | 10 | 28.00 | |
26423 |
|
4 | M10 x 1 | 2,5 | 27 | 10 | 10 | 28.00 | |
26424 |
|
4 | M12 x 1,5 | 2,5 | 32 | 14 | 10 | 54.00 | |
26425 |
|
4 | M14 x 1,5 | 2,5 | 32 | 14 | 10 | 50.00 | |
26426 |
|
4 | R 1/8" | 2,5 | 27 | 10 | 10 | 34.00 | |
26427 |
|
4 | R 1/4" | 2,5 | 32 | 14 | 10 | 34.00 | |
26428 |
|
4 | NPT 1/8" | 2,5 | 29 | 10 | 10 | 34.00 | |
26429 |
|
4 | NPT 1/4" | 2,5 | 35 | 14 | 10 | 34.00 | |
26430 |
|
5 | M12 x 1,5 | 3 | 36 | 14 | 10 | 44.00 | |
26431 |
|
5 | M14 x 1,5 | 3 | 36 | 14 | 10 | 44.00 | |
26432 |
|
5 | R 1/4" | 3 | 36 | 14 | 6 | 45.00 | |
26433 |
|
5 | NPT 1/4" | 3 | 39 | 14 | 6 | 45.00 | |
26434 |
|
6 | M10 x 1 | 4 | 33 | 10 | 10 | 47.00 | |
26435 |
|
6 | M12 x 1,5 | 4 | 38 | 14 | 10 | 48.00 | |
26436 |
|
6 | M14 x 1,5 | 4 | 37 | 14 | 10 | 48.00 | |
26437 |
|
6 | R 1/8" | 4 | 33 | 10 | 10 | 48.00 | |
26438 |
|
6 | R 1/4" | 4 | 38 | 14 | 10 | 48.00 | |
26439 |
|
6 | NPT 1/8" | 4 | 35 | 10 | 10 | 48.00 | |
26440 |
|
6 | NPT 1/4" | 4 | 41 | 14 | 10 | 48.00 | |
26441 |
|
8 | M10 x 1 | 5,6 | 38 | 14 | 10 | 48.00 | |
26442 |
|
8 | M12 x 1,5 | 5,6 | 41 | 14 | 10 | 48.00 | |
26443 |
|
8 | M14 x 1,5 | 5,6 | 41 | 14 | 10 | 50.00 | |
26444 |
|
8 | M18 x 1,5 | 5,6 | 49 | 22 | 8 | 52.00 | |
26445 |
|
8 | M22 x 1,5 | 5,6 | 49 | 22 | 8 | 52.00 |
