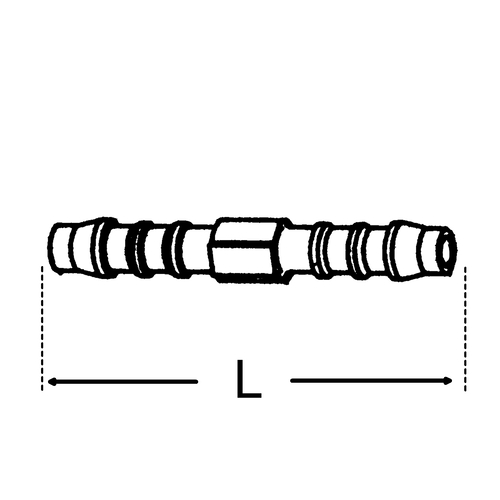

Straight Barb Union made of POM - with hex collar
General Information Resistance to alcohols, aldehydes, petrol, ethers, esters, glycols, motor... more
General Information
Resistance to alcohols, aldehydes, petrol, ethers, esters, glycols, motor oils, neutral salt solutions and water
Material: POM (acetal resin, polyoxymethylene)
Colour: white
Temperature range: -40 to +80 °C, for a short time (1 h) +110 °C
Max. operating pressure: 10 bar at +20 °C
Flammability rating: UL 94 HB
Item | Image |
Tubing inside Ø mm
|
NW mm
|
L mm
|
Einheit Stück
|
Price Euro* | Buy |
---|
Item
|
|
Tubing inside Ø mm
|
NW mm
|
L mm
|
Einheit Stück
|
Price Euro* |
Buy
|
---|---|---|---|---|---|---|---|
94188 |
|
3 | 2,5 | 25 | 10 | 15.00 | |
94175 |
|
4 | 2,7 | 35 | 10 | 18.00 | |
94176 |
|
5 | 3 | 45 | 10 | 18.00 | |
94177 |
|
6 | 4 | 49 | 10 | 23.00 | |
94178 |
|
8 | 5,6 | 56 | 10 | 23.00 | |
26380 |
|
10 | 7 | 63 | 8 | 30.00 | |
26381 |
|
12 | 8,6 | 67 | 8 | 26.00 | |
26382 |
|
13 | 8,6 | 73 | 8 | 30.00 | |
26383 |
|
14 | 10 | 79 | 4 | 26.00 | |
26384 |
|
16 | 12 | 75 | 4 | 28.00 | |
26385 |
|
19 | 15 | 76 | 4 | 35.00 | |
94179 |
|
25 | 21 | 95 | 1 | 12.00 |
