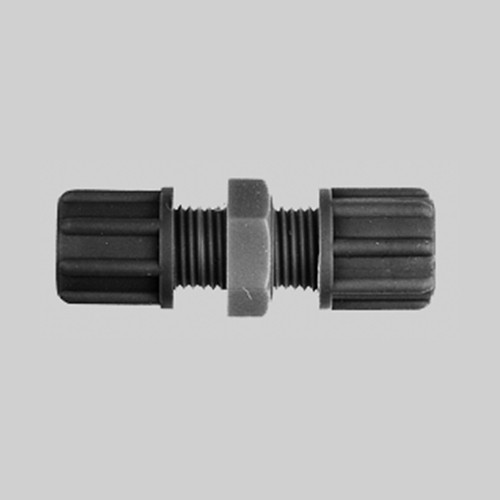

Straight Tube Connector made of PP or PVDF - conductive and antistatic
Product specification Tubing connection on both sides, conductive more
Product specification
Tubing connection on both sides, conductive
General Information For use in chemical container and apparatus construction, electrical... more
General Information
For use in chemical container and apparatus construction, electrical industry, electrochemistry and safety engineering.
Electrically conductive connectors for safe protection against electrostatic charge
UV-resistant and UV-impermeable
Material: PP-EC (polypropylene, electrically conductive)
Colour: black
Max. operating pressure: 10 bar at +20 °C
Temperature range: +5 to +90 °C
Leaking resistance: <102 Ohm
Material: PVDF-EC (polyvinylidene fluoride, electrically conductive)
Colour: black
Max. operating pressure: 10 bar at +20 °C
Temperature range: -40 to +140 °C
Leaking resistance: <103 Ohm

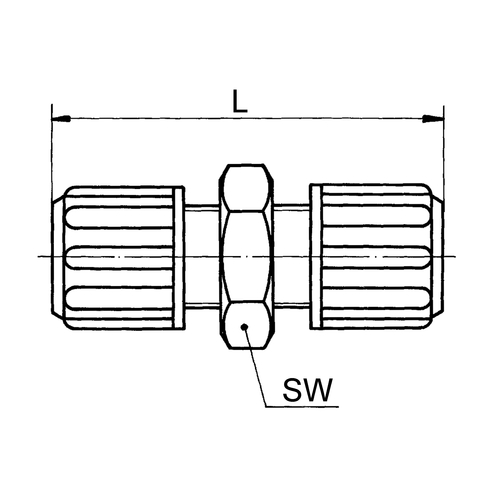

Item | Image |
Tubing inside Ø mm
|
Schlauch Außen-Ø mm
|
L mm
|
SW mm
| Werkstoff |
Einheit Stück
|
Price Euro* | Buy |
---|
Item
|
|
Tubing inside Ø mm
|
Schlauch Außen-Ø mm
|
L mm
|
SW mm
|
Werkstoff
|
Einheit Stück
|
Price Euro* |
Buy
|
---|---|---|---|---|---|---|---|---|---|
341181 |
|
4 | 6 | 36 | 14 | PP | 10 | 68.00 | |
341182 |
|
6 | 8 | 41 | 17 | PP | 10 | 97.00 | |
341183 |
|
6 | 10 | 47 | 19 | PP | 10 | 122.00 | |
341184 |
|
8 | 10 | 50 | 19 | PP | 10 | 127.00 | |
341185 |
|
8 | 12 | 51 | 22 | PP | 5 | 116.00 | |
341186 |
|
10 | 12 | 51 | 22 | PP | 5 | 120.00 | |
341187 |
|
10 | 14 | 57 | 24 | PP | 1 | 43.00 | |
341188 |
|
12 | 14 | 62 | 24 | PP | 1 | 43.00 | |
341189 |
|
12 | 16 | 65 | 27 | PP | 1 | 63.00 | |
341278 |
|
4 | 6 | 36 | 14 | PVDF | 5 | 120.00 | |
341279 |
|
6 | 8 | 41 | 17 | PVDF | 5 | 142.00 | |
341280 |
|
6 | 10 | 47 | 19 | PVDF | 5 | 165.00 | |
341281 |
|
8 | 10 | 50 | 19 | PVDF | 5 | 176.00 | |
341282 |
|
8 | 12 | 51 | 22 | PVDF | 5 | 210.00 | |
341283 |
|
10 | 12 | 51 | 22 | PVDF | 1 | 45.00 | |
341284 |
|
10 | 14 | 57 | 24 | PVDF | 1 | 56.00 | |
341285 |
|
12 | 14 | 62 | 24 | PVDF | 1 | 56.00 | |
341286 |
|
12 | 16 | 65 | 27 | PVDF | 1 | 66.00 |
