Glass Olive Adapter made of PBT
Similar products
Customers also bought
Viewed
Produktspezifikation:

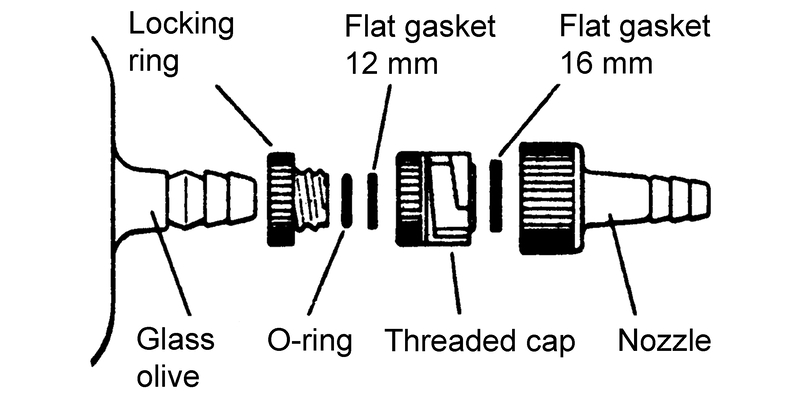

The glass olive adapters are similar to the screw thread adapters, they are additionally equipped with a locking ring for mounting on glass olives.
They are deliverable for the following products: Schott (GL 14), Normag (RD 14), and Corning (SQ 13).
They are hardly stressed and thus protected. There are no problems with adapting or disconnecting of the adapters, that means no distortion of the tubing.
The mating hose nozzles are available in two sizes, with outer diameters of 4.5 mm and 9 mm resp.
Technische Spezifikation:
Material: PBT (thermoplastic polyester), dyed, glass fibre reinforced
Max. temperature: +180 °C
Sterilisation: autoclavable
| Item | Image |
Tubing inside Ø mm
| Außengewinde |
Einheit Stück
|
Price Euro* | Buy |
|---|
Item
|
|
Tubing inside Ø mm
|
Außengewinde
|
Einheit Stück
|
Price Euro* |
Buy
|
|---|---|---|---|---|---|---|
| 40179 |
|
4,5 | GL14 | 1 | 15.00 | |
| 40180 |
|
4,5 | GL14 | 5 | 55.00 | |
| 40181 |
|
9 | GL14 | 1 | 15.00 | |
| 40182 |
|
9 | GL14 | 5 | 55.00 | |
| 40183 |
|
4,5 | RD14 | 1 | 15.00 | |
| 40184 |
|
4,5 | RD14 | 5 | 55.00 | |
| 40185 |
|
9 | RD14 | 1 | 15.00 | |
| 40186 |
|
9 | RD14 | 5 | 55.00 | |
| 40187 |
|
4,5 | SQ13 | 1 | 15.00 | |
| 40189 |
|
9 | SQ13 | 1 | 15.00 |
