Luer-Lock Fitting with Non-Twistable Fit for Luer Tubing Adapter

Luer-Lock Fitting with Non-Twistable Fit for Luer Tubing Adapter

Product specification Colour-coded fittings with tight fit for THOMAFLUID ® Luer tubing... more

Product specification

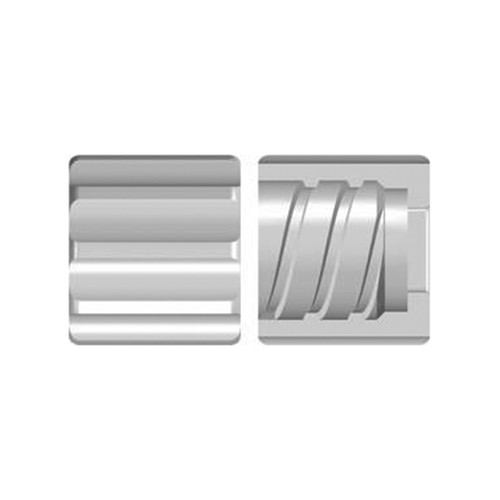

Colour-coded fittings with tight fit for THOMAFLUID^® Luer tubing adapters, items 15717 to 15728, integrated stop for non-twistable fit, alternatively made of PA 6.6 (polyamide 66, nylon), coded in colour white or made of opal PP (polypropylene) or transparent-clear PC (polycarbonate).

General Information PA 6.6 (polyamide 6.6, nylon) Colour: white Temperature range:... more

Close menu

General Information

PA 6.6 (polyamide 6.6, nylon)

Colour: white

Temperature range: -40 to +115 °C

Max. operating pressure: 3 bar at +20 °C

Yellowing and reduction of strength depending on temperature and interaction time

Regulatory compliance to RoHS, BPA-free, DEHP-free, BSE/ADI-free

Good sterilization with autoclave, ethylene oxide and gamma radiation (may discolour to brownish hue)

PP (polypropylene)

Colour: natural

Temperature range: -5 to +120 °C

Max. operating pressure: 3 bar at +20 °C

Regulatory compliance to USP Class VI, FDA 21 CFR 177.1520, RoHS, BPA, DEHP, ADI-free

Good sterilization with ethylene oxide and gamma radiation (bis 6 Mrads), autoclave limited to +121 °C for 20 min.

PC (polycarbonate)

Colour: transparent-clear

Temperature range: -30 to +110 °C

Max. operating pressure: 3 bar at +20 °C

Regulatory compliance to USP Class VI, ISO 10993, FDA 21 CFR 177.1580, RoHS, DEHP

Good sterilization with ethylene oxide and gamma radiation (excellent up to 10 Mrads with minor loss of physical properties), autoclave not recommended

RSPC (Radiation Stable Polycarbonate)

Colour: transparent-violet

Temperature range: -30 to +110 °C

Max. operating pressure: 3 bar at +20 °C

Regulatory compliance to ISO 10993, RoHS, DEHP

Good sterilization with ethylene oxide and gamma radiation (excellent up to 10 Mrads with minor loss of physical properties; light violet hue turns clear upon sterilization), autoclave not recommended

No FDA or USP clearance, not BSE / ADI-free!
