Product specification

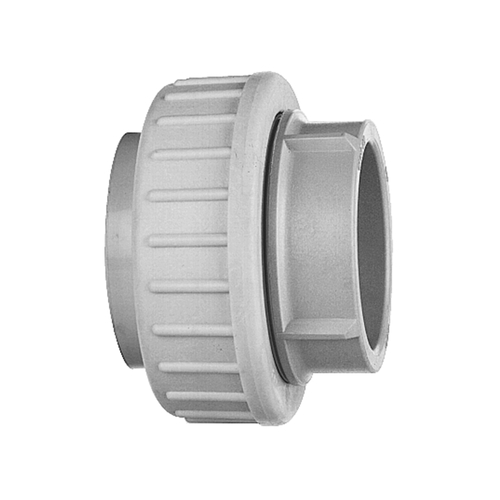

Screw joint made of PP (polypropylene). Gaskets made of EPDM (ethylene-propylene-diene rubber) or FPM (fluorinated rubber).
Connections: welding sleeves on both sides
Good temperature resistance
Good chemical resistance
Resistant to hydrolysis
Very good dielectrical properties
Good mechanical stability
Not resistant to weather and cold (embrittlement)

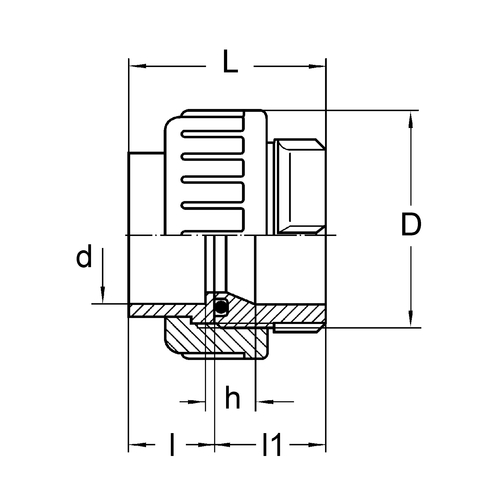

| Item | Image |
d mm
|
h mm
|
L mm
|
PN1 bar
| Material gasket |
Einheit Stück
|
Price Euro* | Buy |
|---|
Item
|
|
d mm
|
h mm
|
L mm
|
PN1 bar
|
Material gasket
|
Einheit Stück
|
Price Euro* |
Buy
|
|---|---|---|---|---|---|---|---|---|---|
| 350238 |
|
20 | 15 | 45 | 10 | EPDM | 1 | 33.00 | |
| 350239 |
|
25 | 15 | 48 | 10 | EPDM | 1 | 35.00 | |
| 350240 |
|
32 | 15 | 52 | 10 | EPDM | 1 | 41.00 | |
| 350241 |
|
40 | 17 | 59 | 10 | EPDM | 1 | 56.00 | |
| 350242 |
|
50 | 19 | 67 | 10 | EPDM | 1 | 69.00 | |
| 350243 |
|
63 | 23 | 79 | 10 | EPDM | 1 | 88.00 | |
| 350244 |
|
20 | 15 | 45 | 10 | FPM | 1 | 37.00 | |
| 350245 |
|
25 | 15 | 48 | 10 | FPM | 1 | 41.00 | |
| 350246 |
|
32 | 15 | 52 | 10 | FPM | 1 | 50.00 | |
| 350247 |
|
40 | 17 | 59 | 10 | FPM | 1 | 60.00 | |
| 350248 |
|
50 | 19 | 67 | 10 | FPM | 1 | 73.00 | |
| 350249 |
|
63 | 23 | 79 | 10 | FPM | 1 | 101.00 |
[1] at +20 °C
