Product specification

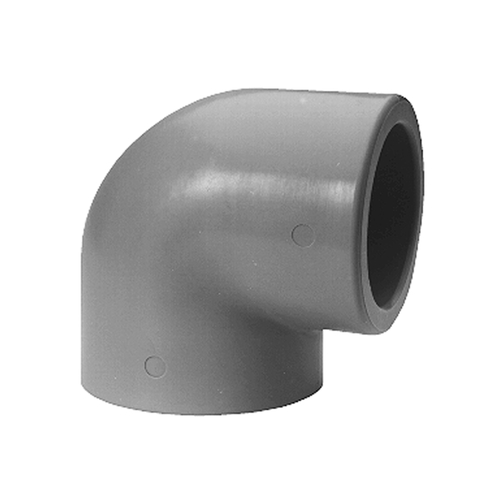

90° elbow pieces made of PP (polypropylene)
Connections: welding sleeves on both sides
Good temperature resistance
Good chemical resistance
Resistant to hydrolysis
Very good dielectrical properties
Good mechanical stability
Not resistant to weather and cold (embrittlement)

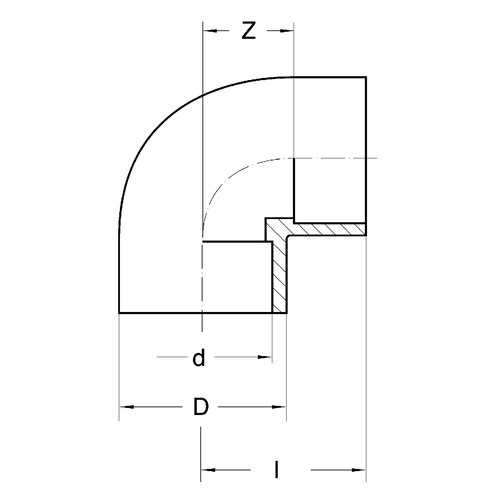

| Item | Image |
d mm
|
D mm
|
PN1 bar
|
Unit piece
|
Price Euro* | Buy |
|---|
Item
|
|
d mm
|
D mm
|
PN1 bar
|
Unit piece
|
Price Euro* |
Buy
|
|---|---|---|---|---|---|---|---|
| 350220 |
|
20 | 27,8 | 10 | 5 | 113.00 | |
| 350221 |
|
25 | 33,7 | 10 | 5 | 134.00 | |
| 350222 |
|
32 | 42 | 10 | 5 | 162.00 | |
| 350223 |
|
40 | 51,5 | 10 | 5 | 180.00 | |
| 350224 |
|
50 | 63,3 | 10 | 3 | 196.00 | |
| 350225 |
|
63 | 78,6 | 10 | 2 | 183.00 |
[1] at +20 °C
