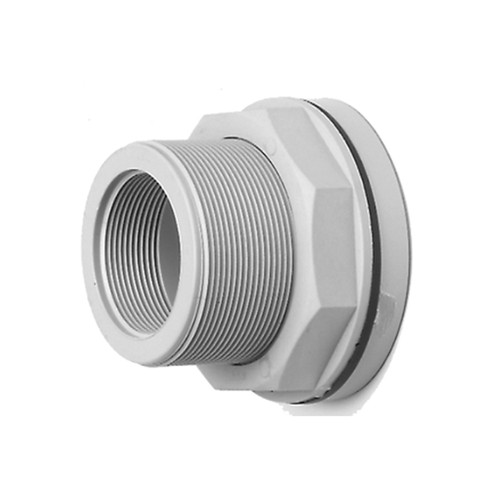

Tank Screw Connection made of PP
Application area Chemical and pharmaceutical industry, plant and apparatus engineering,... more
Application area
Chemical and pharmaceutical industry, plant and apparatus engineering, environmental technology and process engineering, sewage and water treatment technology
Product specification
Metal-free tank screw connections made of PP (polypropylene) for plastic or metal tanks. Gaskets made of FPM (fluorinated rubber) or EPDM (ethylene-propylene-diene rubber)
Good temperature resistance
Good chemical resistance
Resistant to hydrolysis
Very good dielectrical properties
Good mechanical stability
Not resistant to weather and cold (embrittlement)

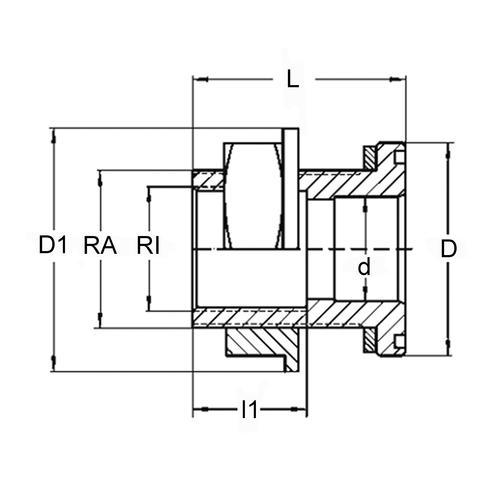

Item | Image | External thread | Innengewinde |
d mm
|
D mm
|
D1 mm
|
l1 mm
|
L mm
| Werkstoff Dichtung |
Einheit Stück
|
Price Euro* | Buy |
---|
Item
|
|
External thread
|
Innengewinde
|
d mm
|
D mm
|
D1 mm
|
l1 mm
|
L mm
|
Werkstoff Dichtung
|
Einheit Stück
|
Price Euro* |
Buy
|
---|---|---|---|---|---|---|---|---|---|---|---|---|
350208 |
|
G 3/4" | G 3/8" | 16 | 36 | 36 | 13 | 40 | EPDM | 2 | 99.00 | |
350209 |
|
G 1" | G 1/2" | 20 | 50 | 50 | 17 | 45 | EPDM | 2 | 103.00 | |
350210 |
|
G 1" | G 3/4" | 25 | 50 | 50 | 18 | 45 | EPDM | 2 | 98.00 | |
350211 |
|
G 1 1/4" | G 1" | 32 | 60 | 60 | 21 | 60 | EPDM | 2 | 112.00 | |
350212 |
|
G 2" | G 1 1/2" | 40 | 80 | 93 | 23 | 74 | EPDM | 2 | 127.00 | |
350213 |
|
G 2 3/4" | G 2" | 63 | 110 | 110 | 27 | 80 | EPDM | 2 | 173.00 | |
350214 |
|
G 3/4" | G 3/8" | 16 | 36 | 36 | 13 | 40 | FPM | 2 | 141.00 | |
350215 |
|
G 1" | G 1/2" | 20 | 50 | 50 | 17 | 45 | FPM | 2 | 136.00 | |
350216 |
|
G 1" | G 3/4" | 25 | 50 | 50 | 18 | 45 | FPM | 2 | 136.00 | |
350217 |
|
G 1 1/4" | G 1" | 32 | 60 | 60 | 21 | 60 | FPM | 2 | 159.00 | |
350218 |
|
G 2" | G 1 1/2" | 40 | 80 | 93 | 23 | 74 | FPM | 2 | 185.00 | |
350219 |
|
G 2 3/4" | G 2" | 63 | 110 | 110 | 27 | 80 | FPM | 1 | 139.00 |
