Product specification

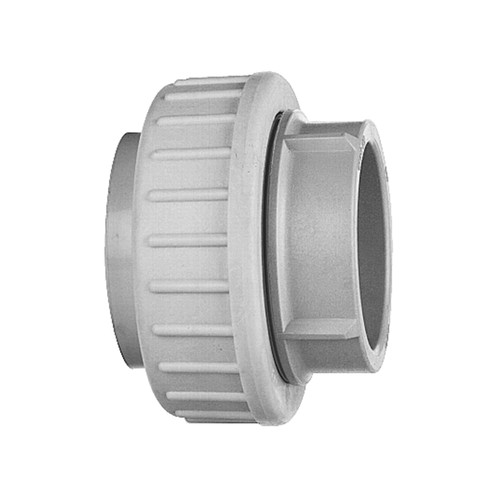

Screw connector made of PVDF (polyvinylidene fluoride), gasket made of FPM
Welding sleeves on both sides
Good mechanical stability
High dimensional stability
Tough even at low temperatures
Resistant to weather and UV radiation
Good temperature resistance
Good to very good chemical resistance

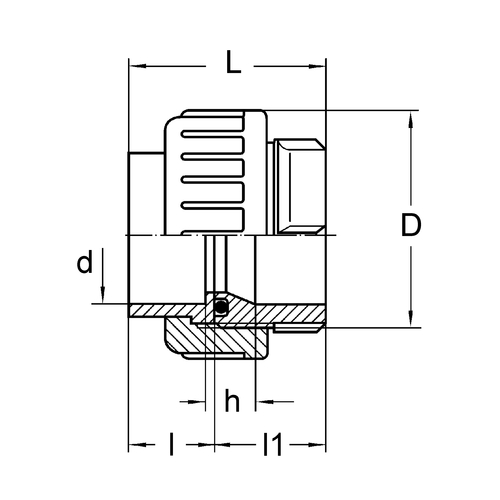

| Item | Image |
d mm
|
D mm
|
h mm
|
L mm
|
PN1 bar
|
Unit piece
|
Price Euro* | Buy |
|---|
Item
|
|
d mm
|
D mm
|
h mm
|
L mm
|
PN1 bar
|
Unit piece
|
Price Euro* |
Buy
|
|---|---|---|---|---|---|---|---|---|---|
| 350282 |
|
16 | 35 | 17 | 42 | 16 | 1 | 89.00 | |
| 350283 |
|
20 | 47 | 17 | 45 | 16 | 1 | 102.00 | |
| 350284 |
|
25 | 57 | 17 | 49 | 16 | 1 | 125.00 | |
| 350285 |
|
32 | 64 | 17 | 53 | 16 | 1 | 166.00 | |
| 350286 |
|
40 | 78 | 19 | 59 | 16 | 1 | 225.00 | |
| 350287 |
|
50 | 89 | 21 | 67 | 16 | 1 | 306.00 | |
| 350288 |
|
63 | 109 | 25 | 79 | 16 | 1 | 438.00 |
[1] at +20 °C
