Hose Clamp Safety
Product specification Flush-closing safety hose mounting clamps made of stainless steel strip... more
Product specification

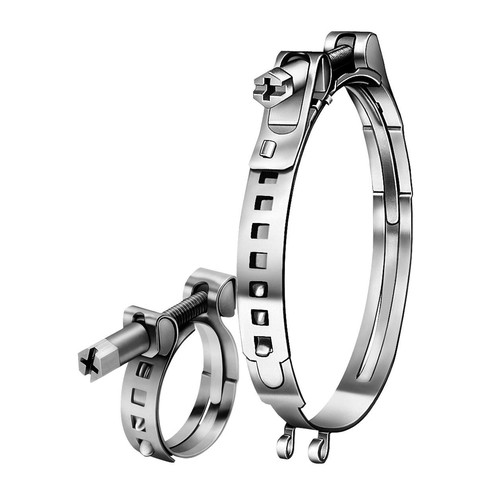

Flush-closing safety hose mounting clamps made of stainless steel strip 1.4301 (18/9), pressing on the total circumference constantly and material saving by means of special hook arresting and strap connection, fitted with a stepless, easily releasable screw lock. Two practice-oriented basic versions with overlapping clamp diameters between 26 mm and 110 mm resp. for varying applications of load and all kinds of tubing materials: strip width 7 and 9 mm (strip thickness 0.6 mm) respectively.
Item | Image |
Tubing outside Ø mm
|
Bandbreite mm
|
Einheit Stück
|
Price Euro* | Buy |
---|
Item
|
|
Tubing outside Ø mm
|
Bandbreite mm
|
Einheit Stück
|
Price Euro* |
Buy
|
---|---|---|---|---|---|---|
47653 |
|
26 - 32 | 9 | 5 | 68.00 | |
47654 |
|
26 - 32 | 9 | 10 | 96.00 | |
47657 |
|
30 - 36 | 9 | 5 | 74.00 | |
47658 |
|
30 - 36 | 9 | 10 | 100.00 | |
47661 |
|
34 - 40 | 9 | 5 | 74.00 | |
47662 |
|
34 - 40 | 9 | 10 | 100.00 | |
47665 |
|
38 - 45 | 9 | 5 | 74.00 | |
47666 |
|
38 - 45 | 9 | 10 | 100.00 | |
47669 |
|
43 - 50 | 9 | 5 | 74.00 | |
47670 |
|
43 - 50 | 9 | 10 | 100.00 | |
47671 |
|
48 - 55 | 7 | 5 | 78.00 | |
47672 |
|
48 - 55 | 7 | 10 | 106.00 | |
47673 |
|
48 - 55 | 9 | 5 | 78.00 | |
47674 |
|
48 - 55 | 9 | 10 | 106.00 | |
47677 |
|
49 - 60 | 9 | 5 | 78.00 | |
47678 |
|
49 - 60 | 9 | 10 | 106.00 | |
47681 |
|
54 - 65 | 9 | 5 | 84.00 | |
47682 |
|
54 - 65 | 9 | 10 | 112.00 | |
47685 |
|
59 - 70 | 9 | 5 | 84.00 | |
47686 |
|
59 - 70 | 9 | 10 | 112.00 | |
47689 |
|
64 - 75 | 9 | 5 | 84.00 | |
47690 |
|
64 - 75 | 9 | 10 | 112.00 | |
47693 |
|
69 - 80 | 9 | 5 | 88.00 | |
47694 |
|
69 - 80 | 9 | 10 | 116.00 | |
47697 |
|
74 - 85 | 9 | 5 | 88.00 |
