PTFE Shrinkable Tubing, Shrinking Rate 4:1 - bulk stock

PTFE Shrinkable Tubing, Shrinking Rate 4:1 - bulk stock

Close menu

No additional information available.

General Information Insulation of electrical components, ideal corrosion protection,... more

Close menu

General Information

Insulation of electrical components, ideal corrosion protection, excellently suitable for jacketing of movable and mechanical components, insulation of heating conductor connections and resistors.

Good dielectric strength

Unmeltable and self-extinguishing

Highest chemical resistance

Highest abrasion resistance

Thin-walled and semi-rigid

High temperatures

Material: PTFE (polytetrafluoroethylene)

Colour: transparent, smooth

Temperature range: -65 to +260 °C

Shrinkage temperature: +350 to +500 °C

Storage temperature: max. +50 °C

Longitudinal shrinkage: max. 10 %

Dielectric strength: 25 kV/mm min.

Dielectric constant: max. 2.2

Volume Resistivity: 10¹⁸ Ohm x cm min.

Production standard: according to MIL-I-23053 / 12 A, Class 5 produced according to EMS-3584

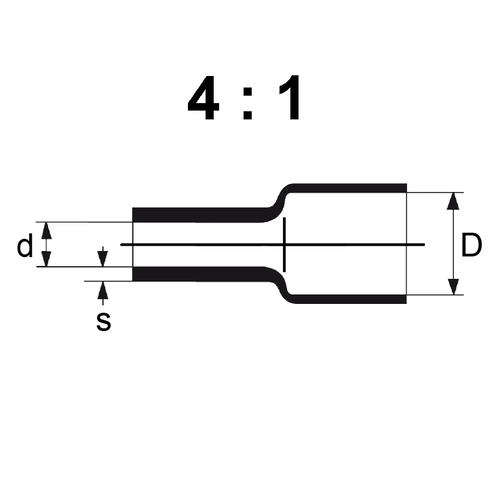

Item	Ø before shrinkage (D) mm	Ø nach Schrumpfung (d) mm	Wandstärke nach Schrumpfung (s) mm	Einheit m	Price Euro*
166341	2	0,64	0,22	1	29.00
166351	2	0,64	0,22	5	127.00
166361	2	0,64	0,22	10	218.00
166371	3,2	0,94	0,25	1	32.00
166381	3,2	0,94	0,25	5	133.00
16639	3,2	0,94	0,25	10	226.00
16640	4,8	1,27	0,3	1	33.00
16641	4,8	1,27	0,3	5	136.00
16642	4,8	1,27	0,3	10	234.00
16643	6,4	1,6	0,3	1	34.00
16644	6,4	1,6	0,3	5	140.00
16645	6,4	1,6	0,3	10	239.00
16646	7,9	2	0,3	1	41.00
16647	7,9	2	0,3	5	170.00
16648	7,9	2	0,3	10	289.00
16649	9,5	2,44	0,3	1	43.00
16650	9,5	2,44	0,3	5	185.00
16651	9,5	2,44	0,3	10	317.00
16652	11,1	2,85	0,3	1	48.00
16653	11,1	2,85	0,3	5	196.00
16654	11,1	2,85	0,3	10	335.00
16655	12,7	3,66	0,38	1	49.00
16656	12,7	3,66	0,38	5	200.00
16657	12,7	3,66	0,38	10	339.00
16658	14,3	3,94	0,38	1	52.00
