PTFE Shrinkable Tubing, Shrinking Rate 2:1 - short length

PTFE Shrinkable Tubing, Shrinking Rate 2:1 - short length

Close menu

No additional information available.

General Information Insulation of electrical components, ideal corrosion protection,... more

Close menu

General Information

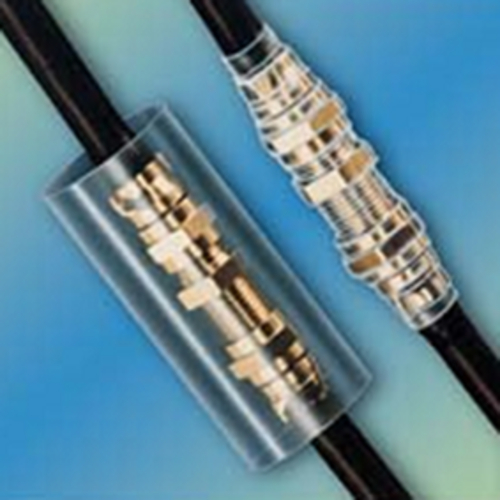

Insulation of electrical components, ideal corrosion protection, excellently suitable for jacketing of movable and mechanical components, insulation of heating conductor connections and resistors.

Good dielectric strength

Unmeltable and self-extinguishing

Highest chemical resistance

Highest abrasion resistance

Thin-walled and semi-rigid

High temperatures

Material: PTFE (polytetrafluoroethylene)

Colour: transparent, smooth

Temperature range: -65 to +260 °C

Shrinkage temperature: +350 to +500 °C

Storage temperature: max. +50 °C

Longitudinal shrinkage: max. 10 %

Dielectric strength: 25 kV/mm min.

Dielectric constant: max. 2.2

Volume Resistivity: 10¹⁸ Ohm x cm min.

Production standard: according to MIL-I-23053 / 12 A, Class 5 produced according to EMS-3584

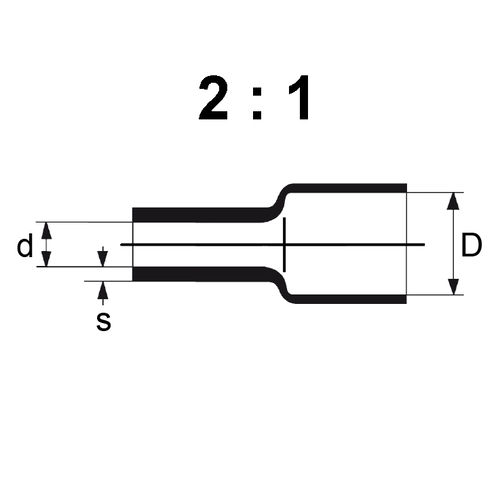

Item	Ø before shrinkage (D) mm	Wandstärke nach Schrumpfung (s) mm	Ø nach Schrumpfung (d) mm	Einheit m	Price Euro*
940531	1,3	0,15	0,7	1,2	21.00
940541	1,3	0,3	0,8	1,2	23.00
940551	2,8	0,15	1,6	1,2	28.00
940561	2,8	0,4	1,7	1,2	35.00
940581	3,5	0,2	2	1,2	30.00
940591	3,5	0,4	2,2	1,2	42.00
940611	6,8	0,2	4	1,2	67.00
940621	7,7	0,5	4,5	1,2	95.00
940631	9,4	0,5	5,7	1,2	102.00
940642	10,9	0,5	7	1,2	106.00
