Product specification

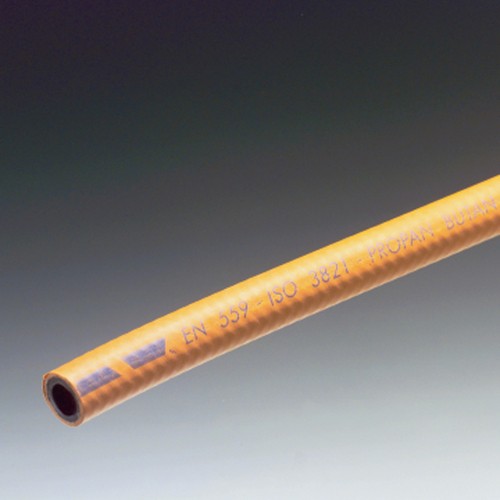

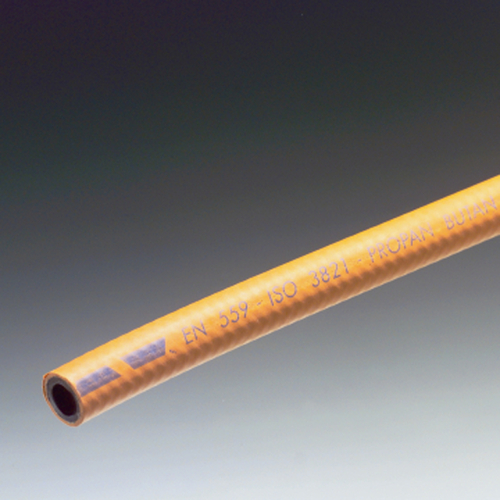

Robust special tubing for liquefied gas due to compound NBR/EPDM
Typical use: LPG, propane and butane
Highest resistance to abrasion, as well as to weather and ozone due to the compound definition.
Technical specification

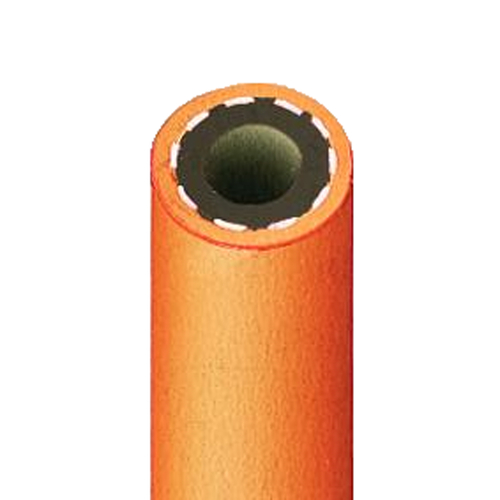

Material:
Liner: NBR (butadiene-acrylonitrile rubber)
Jacket: EPDM (ethylene-propylene-diene rubber)
Colour:
Liner: black, smooth
Jacket: orange, smooth
Temperature range: -30 to +80 °C
Bursting pressure: 60 bar at +20 °C
Insert: synthetic fabrics
Regulations: EN ISO 3821:2010; EN 559:20031
| Item | Image |
Inside Ø mm
|
Außen-Ø mm
|
min. Biegeradius mm
|
Einheit m
|
Price Euro* | Buy |
|---|
Item
|
|
Inside Ø mm
|
Außen-Ø mm
|
min. Biegeradius mm
|
Einheit m
|
Price Euro* |
Buy
|
|---|---|---|---|---|---|---|---|
| 12751 |
|
6,4 | 13,3 | 40 | 5 | 81.00 | |
| 12752 |
|
6,4 | 13,3 | 40 | 10 | 149.00 | |
| 12753 |
|
6,4 | 13,3 | 40 | 15 | 206.00 | |
| 12754 |
|
8 | 15 | 40 | 5 | 88.00 | |
| 12755 |
|
8 | 15 | 40 | 10 | 162.00 | |
| 12756 |
|
8 | 15 | 40 | 15 | 223.00 |
