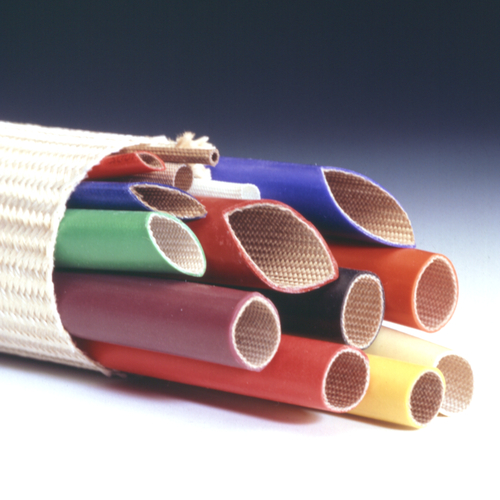

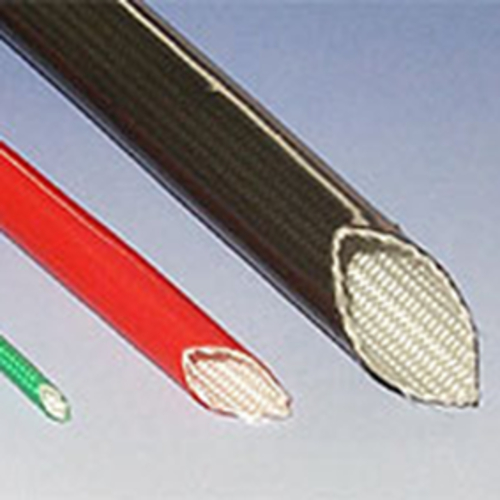

Glass Fabric Tubing with Acrylic Resin Coating

Application area Insulation of lines, cables and connections in the areas of mechanical... more

Application area

Insulation of lines, cables and connections in the areas of mechanical engineering, engine and transformer construction

Product specification

Protective tubing for standard applications

Remarkable breakdown voltage

Chemical resistance: Compatible with most insulating varnishes.

Technical specification

Material: glass fabric tubing, acrylic resin coated

Colour: natural, black, red, blue, yellow, green, orange, violet

Temperature range: -40 to +155 °C

Dielectric strength: 5.0 kV (DIN 40620)

Breakdown voltage: average 9.0 kV (IEC 684); min. 6.0 kV (IEC 684), 8.0 kV (UL 1441)

Flammability: self extinguishing within 60 sec. (IEC 684 part 2, paragraph 26, method A vertical, UL 1441 horizontal)

Flammability rating: IEC 684-3 Blatt 403-405, UL 1441, rated +155 °C, 600 V

No additional information available.

Item	Inside Ø mm	Toleranz mm	Wandstärke mm	Farbe	Einheit m	Price Euro*
331783	0,5	+0,2	0,28	natur/weiß	5	33.00
331784	0,5	+0,2	0,28	natur/weiß	15	86.00
331785	0,5	+0,2	0,28	schwarz	5	33.00
331786	0,5	+0,2	0,28	schwarz	15	86.00
331787	0,5	+0,2	0,28	rot	5	33.00
331788	0,5	+0,2	0,28	rot	15	86.00
331789	0,5	+0,2	0,28	blau	5	33.00
331790	0,5	+0,2	0,28	blau	15	86.00
331791	0,5	+0,2	0,28	gelb	5	33.00
331792	0,5	+0,2	0,28	gelb	15	86.00
331793	0,5	+0,2	0,28	grün	5	33.00
331794	0,5	+0,2	0,28	grün	15	86.00
331795	0,5	+0,2	0,28	orange	5	33.00
331796	0,5	+0,2	0,28	orange	15	86.00
331797	0,5	+0,2	0,28	violett	5	33.00
331798	0,5	+0,2	0,28	violett	15	86.00
331799	1	+0,2	0,38	natur/weiß	5	37.00
331800	1	+0,2	0,38	natur/weiß	15	97.00
331801	1	+0,2	0,38	schwarz	5	37.00
331802	1	+0,2	0,38	schwarz	15	97.00
331803	1	+0,2	0,38	rot	5	37.00
331804	1	+0,2	0,38	rot	15	97.00
331805	1	+0,2	0,38	blau	5	37.00
331806	1	+0,2	0,38	blau	15	97.00
331807	1	+0,2	0,38	gelb	5	37.00
