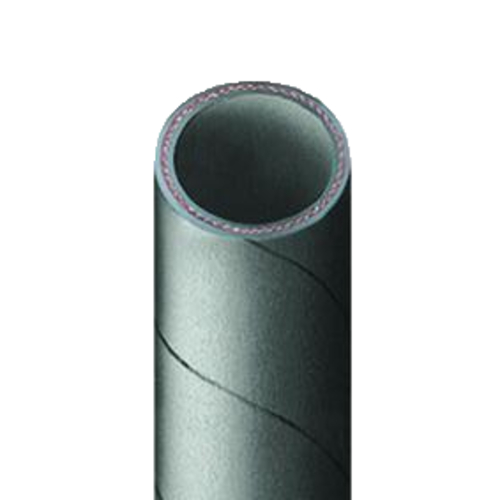

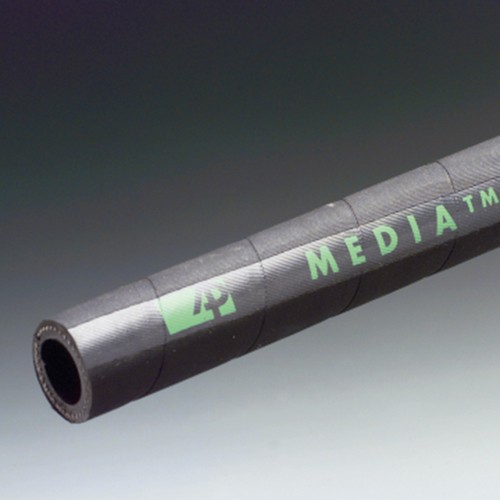

EPDM Pressure Tubing
Product specification Special tubing for chemical engineering Good resistance to many... more
Product specification
Special tubing for chemical engineering
Good resistance to many alkalis, acids, and polar solvents, except to mineral oils
Very good mechanical properties
Very good resistance to aging, weather, and ozone
Technical specification
Material: EPDM (ethylene-propylene-diene rubber)
Colour: black
Temperature range: -30 to +100 °C
Insert: two rayon fabric inserts
Design: inside and outside smooth (with textile imprint and green marker strip)
Item | Image |
Inside Ø mm
|
Außen-Ø mm
|
max. Betr.-Druck1 bar
|
min. Biegeradius mm
|
Einheit m
|
Price Euro* | Buy |
---|
Item
|
|
Inside Ø mm
|
Außen-Ø mm
|
max. Betr.-Druck1 bar
|
min. Biegeradius mm
|
Einheit m
|
Price Euro* |
Buy
|
---|---|---|---|---|---|---|---|---|
12527 |
|
10 | 17 | 20 | 100 | 5 | 141.00 | |
12528 |
|
10 | 17 | 20 | 100 | 10 | 239.00 | |
12529 |
|
12,7 | 21 | 20 | 130 | 5 | 151.00 | |
12530 |
|
12,7 | 21 | 20 | 130 | 10 | 250.00 | |
12531 |
|
16 | 24 | 20 | 160 | 5 | 157.00 | |
12532 |
|
16 | 24 | 20 | 160 | 10 | 264.00 | |
12533 |
|
19 | 28 | 20 | 190 | 5 | 187.00 | |
12534 |
|
19 | 28 | 20 | 190 | 10 | 310.00 | |
12535 |
|
22 | 31 | 20 | 220 | 5 | 217.00 | |
12536 |
|
22 | 31 | 20 | 220 | 10 | 359.00 | |
12537 |
|
25,4 | 35 | 20 | 250 | 1 | 53.00 | |
12538 |
|
25,4 | 35 | 20 | 250 | 3 | 127.00 | |
12539 |
|
30 | 41 | 20 | 300 | 1 | 58.00 | |
12540 |
|
30 | 41 | 20 | 300 | 3 | 143.00 | |
12541 |
|
35 | 46 | 12 | 350 | 1 | 69.00 | |
12542 |
|
35 | 46 | 12 | 350 | 3 | 165.00 | |
12543 |
|
40 | 52 | 12 | 400 | 1 | 78.00 | |
12544 |
|
40 | 52 | 12 | 400 | 3 | 185.00 | |
12545 |
|
45 | 57 | 12 | 450 | 1 | 91.00 | |
12546 |
|
45 | 57 | 12 | 450 | 3 | 217.00 |
Page
[1] at +20 °C
