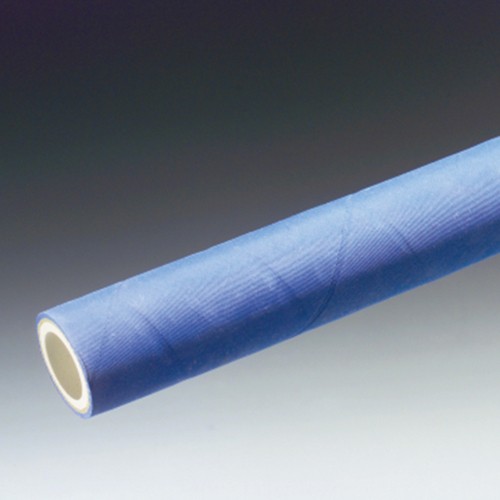

EPDM High-Temperature Pressure Tubing for Dairy and Food
Product specification Evaporating tubing for dairies Cleaning tubing for the food processing... more
Product specification
Evaporating tubing for dairies
Cleaning tubing for the food processing industry
Usable for highest temperatures
High resistance to aging, weather, and ozone
Good resistance to many alkalis, acids, and polar solvents, except to mineral oils
Technical specification
Material: EPDM (ethylene-propylene-diene rubber)
Colour: inside light-coloured, outside blue-coloured
Temperature range: -30 to +95 °C
Sterilization: saturated steam (+164 °C)
Max. operating pressure: 6 bar at +164 °C

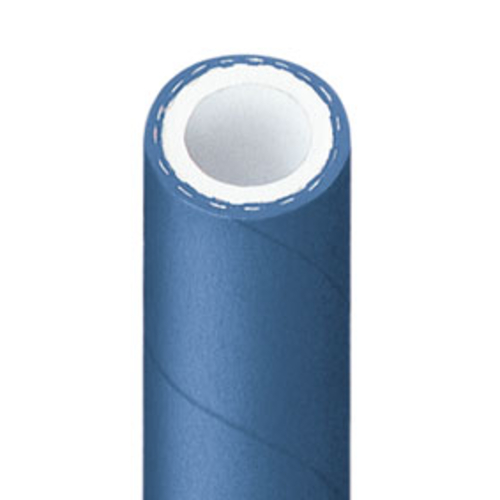

Insert: two polyester inserts
Design: inside and outside smooth (with textile imprint)
Conformity: the inner layer is produced conforming to FDA and suitable for food contact
Item | Image |
Inside Ø mm
|
Außen-Ø mm
|
max. Betr.-Druck1 bar
|
min. Biegeradius mm
|
Einheit m
|
Price Euro* | Buy |
---|
Item
|
|
Inside Ø mm
|
Außen-Ø mm
|
max. Betr.-Druck1 bar
|
min. Biegeradius mm
|
Einheit m
|
Price Euro* |
Buy
|
---|---|---|---|---|---|---|---|---|
12435 |
|
10 | 20 | 6 | 60 | 3 | 149.00 | |
12436 |
|
10 | 20 | 6 | 60 | 6 | 246.00 | |
12437 |
|
13 | 23 | 6 | 100 | 3 | 160.00 | |
12438 |
|
13 | 23 | 6 | 100 | 6 | 262.00 | |
12439 |
|
16 | 26 | 6 | 120 | 3 | 199.00 | |
12440 |
|
16 | 26 | 6 | 120 | 6 | 316.00 | |
12441 |
|
19 | 31 | 6 | 160 | 3 | 211.00 | |
12442 |
|
19 | 31 | 6 | 160 | 6 | 338.00 | |
12443 |
|
25 | 39 | 6 | 200 | 3 | 253.00 | |
12444 |
|
25 | 39 | 6 | 200 | 6 | 415.00 | |
12445 |
|
38 | 54 | 6 | 300 | 1 | 121.00 | |
12446 |
|
38 | 54 | 6 | 300 | 3 | 288.00 | |
12447 |
|
50 | 67 | 6 | 380 | 1 | 137.00 | |
12448 |
|
50 | 67 | 6 | 380 | 3 | 331.00 |
Page
[1] at +20 °C
