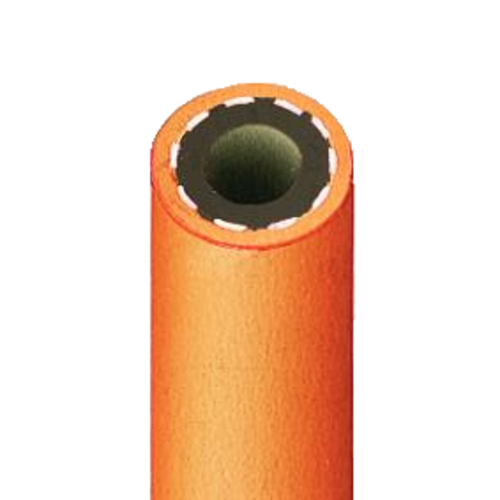

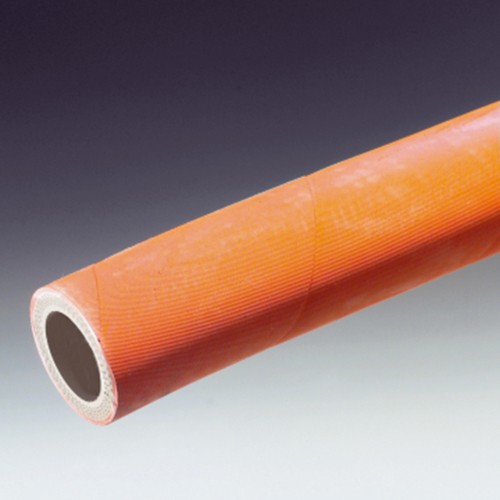

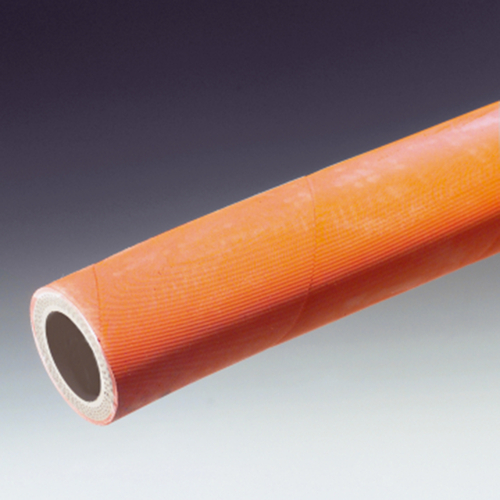

EPDM Double-Wall Jacket Tubing for Beverages
Product specification Robust tubing for nonfat food Recommended particularly for fruit... more
Product specification
Robust tubing for nonfat food
Recommended particularly for fruit juices, mineral water and alcoholic beverages (such as wine and cider)
Very good abrasion resistance
Technical specification
Material:
Liner: EPDM (ethylene-propylene-diene rubber)
Insert: textile insert
Colour:
Liner: white, smooth
Jacket: red, smooth, textured liner
Temperature range: -35 to +95 °C
Max. operating pressure: 12 bar at +20 °C
Vacuum resistance: 500 - 600 mbar at +20 °C
Regulations: FDA; BfR Cat III
Item | Image |
Inside Ø mm
|
Außen-Ø mm
|
max. Betr.-Druck1 bar
|
Vakuum1 mbar
|
min. Biegeradius mm
|
Einheit m
|
Price Euro* | Buy |
---|
Item
|
|
Inside Ø mm
|
Außen-Ø mm
|
max. Betr.-Druck1 bar
|
Vakuum1 mbar
|
min. Biegeradius mm
|
Einheit m
|
Price Euro* |
Buy
|
---|---|---|---|---|---|---|---|---|---|
12373 |
|
19 | 29 | 12 | 500 | 100 | 3 | 196.00 | |
12374 |
|
19 | 29 | 12 | 500 | 100 | 6 | 324.00 | |
12375 |
|
25 | 37 | 12 | 500 | 150 | 3 | 237.00 | |
12376 |
|
25 | 37 | 12 | 500 | 150 | 6 | 392.00 | |
12377 |
|
32 | 48 | 12 | 500 | 170 | 1 | 134.00 | |
12378 |
|
32 | 48 | 12 | 500 | 170 | 3 | 307.00 | |
12379 |
|
40 | 60 | 12 | 500 | 250 | 1 | 161.00 | |
12380 |
|
40 | 60 | 12 | 500 | 250 | 3 | 383.00 | |
12381 |
|
45 | 65 | 12 | 500 | 270 | 1 | 188.00 | |
12382 |
|
45 | 65 | 12 | 500 | 270 | 3 | 442.00 | |
12383 |
|
50 | 72 | 12 | 500 | 350 | 1 | 201.00 | |
12384 |
|
50 | 72 | 12 | 500 | 350 | 3 | 501.00 | |
12385 |
|
60 | 82 | 12 | 500 | 450 | 1 | 208.00 | |
12386 |
|
60 | 82 | 12 | 500 | 450 | 3 | 611.00 | |
12387 |
|
65 | 89 | 12 | 600 | 450 | 1 | 300.00 | |
12388 |
|
65 | 89 | 12 | 600 | 450 | 3 | 742.00 |
Page
[1] at +20 °C
