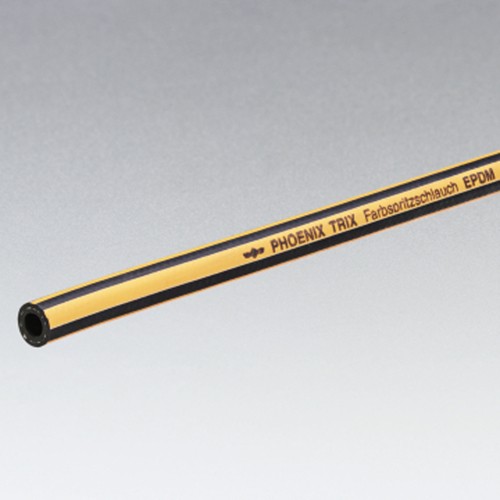

EPDM Spray Painting Tubing
Product specification Flexible, light-weighted pressure tubing. Good resistance to abrasion.... more
Product specification
Flexible, light-weighted pressure tubing.
Good resistance to abrasion.
Good mechanical material properties.
As spray painting tubing predestined for spirit, nitrocellulose, chlorinated-rubber, polyurethane and epoxy varnish as well as emulsion paints.
Technical specification
Material: EPDM (ethylene-propylene-diene rubber)
Colour: black
Temperature range: -40 to +100 °C
Electrical characteristics: antistatic interior and exterior, R <106 Ohm
Insert: synthetic fabrics
Design: inside and outside smooth (with longitudinal grooves)
Marking: orange longitudinal stripes
Item | Image |
Inside Ø mm
|
Außen-Ø mm
|
max. Betr.-Druck1 bar
|
min. Biegeradius mm
|
Einheit m
|
Price Euro* | Buy |
---|
Item
|
|
Inside Ø mm
|
Außen-Ø mm
|
max. Betr.-Druck1 bar
|
min. Biegeradius mm
|
Einheit m
|
Price Euro* |
Buy
|
---|---|---|---|---|---|---|---|---|
12770 |
|
9 | 16 | 10 | 45 | 5 | 146.00 | |
12771 |
|
9 | 16 | 10 | 45 | 10 | 269.00 | |
12772 |
|
9 | 16 | 10 | 45 | 15 | 343.00 |
Page
[1] at +20 °C
