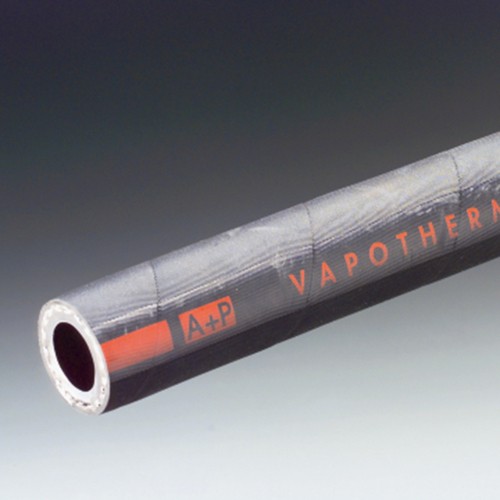

EPDM Steam and Hot Water Tubing
Product specification High-temperature tubing for hot water and steam. Good mechanical... more
Product specification
High-temperature tubing for hot water and steam.
Good mechanical properties.
Best resistance to aging, weather, and ozone.
Good resistance to many alkalis, acids, and polar solvents, except to mineral oils.
Technical specification
Material: EPDM (ethylene-propylene-diene rubber)
Colour: black

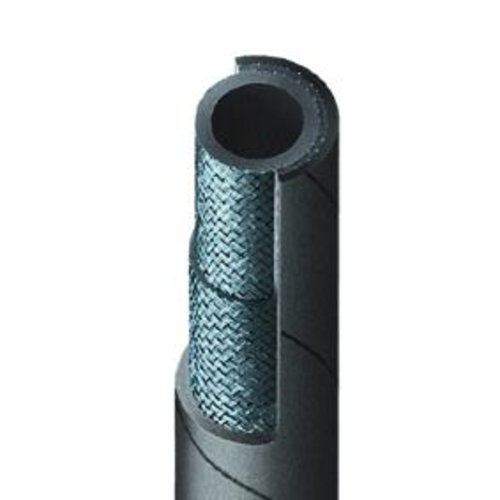

Insert: two steel wire braidings
Temperature range: -40 to +100 °C
Saturated steam: +210 °C
Design: inside and outside smooth (with textile imprint)
Marking: red longitudinal stripe (DIN EN ISO 6134)
Item | Image |
Inside Ø mm
|
Außen-Ø mm
|
max. Betr.-Druck1 bar
|
min. Biegeradius mm
|
Einheit m
|
Price Euro* | Buy |
---|
Item
|
|
Inside Ø mm
|
Außen-Ø mm
|
max. Betr.-Druck1 bar
|
min. Biegeradius mm
|
Einheit m
|
Price Euro* |
Buy
|
---|---|---|---|---|---|---|---|---|
49292 |
|
13 | 25 | 18 | 130 | 1 | 181.00 | |
49293 |
|
13 | 25 | 18 | 130 | 3 | 437.00 | |
49460 |
|
16 | 28 | 18 | 160 | 1 | 229.00 | |
49461 |
|
16 | 28 | 18 | 160 | 3 | 544.00 | |
12399 |
|
19 | 33 | 18 | 190 | 1 | 156.00 | |
12400 |
|
19 | 33 | 18 | 190 | 3 | 368.00 | |
12401 |
|
25 | 40 | 18 | 250 | 1 | 176.00 | |
12402 |
|
25 | 40 | 18 | 250 | 3 | 425.00 | |
12403 |
|
32 | 48 | 18 | 320 | 1 | 237.00 | |
12404 |
|
32 | 48 | 18 | 320 | 3 | 564.00 | |
12405 |
|
38 | 54 | 18 | 380 | 1 | 317.00 | |
12406 |
|
38 | 54 | 18 | 380 | 3 | 769.00 | |
12407 |
|
50 | 68 | 18 | 500 | 1 | 425.00 | |
12408 |
|
50 | 68 | 18 | 500 | 3 | 1,025.00 |
Page
[1] at +20 °C
