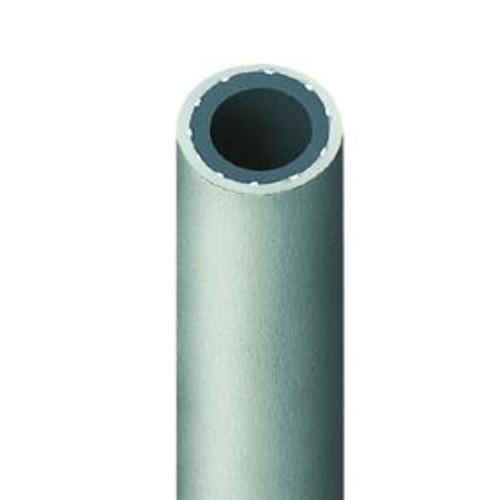

NBR/PVC Pressure Inlet Hose for Washing Machines
Application area Inlet hose for washing machines Suitable for dishwashers Product... more
Application area
Inlet hose for washing machines
Suitable for dishwashers
Product specification
Robust pressure tubing
Flexible design
Resistant to weather and aging
Technical specification
Material:
Liner: NBR (butadiene-acrylonitrile rubber)
Jacket: PVC-P (polyvinyl chloride, soft)
Colour:
Liner: black, smooth
Jacket: grey, smooth
Temperature range: -20 to +95 °C
Max. operating pressure: 30 bar at +25 °C
Bursting pressure: 90 bar at +25 °C
Tubing imprint: 95 bar (max.) - PB 90 bar at +25 °C
Item | Image |
Inside Ø mm
|
Außen-Ø mm
|
max. Betr.-Druck1 bar
|
Einheit m
|
Price Euro* | Buy |
---|
Item
|
|
Inside Ø mm
|
Außen-Ø mm
|
max. Betr.-Druck1 bar
|
Einheit m
|
Price Euro* |
Buy
|
---|---|---|---|---|---|---|---|
340056 |
|
10 | 17 | 30 | 5 | 63.00 | |
340057 |
|
10 | 17 | 30 | 10 | 114.00 | |
340058 |
|
13 | 20 | 30 | 5 | 75.00 | |
340059 |
|
13 | 20 | 30 | 10 | 135.00 |
Page
[1] at +20 °C
