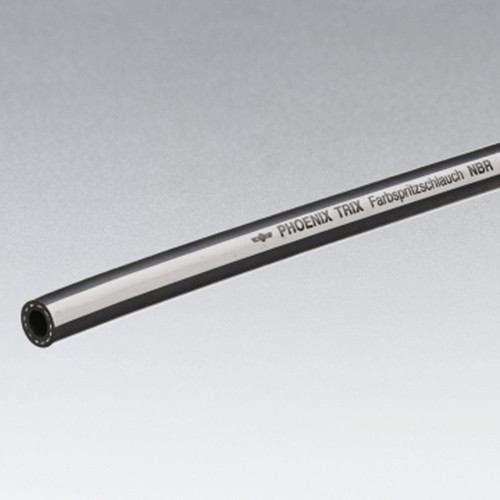

NBR Spray Painting Tubing
Product specification Flexible, light-weighted pressure tubing Good abrasion resistance... more
Product specification
Flexible, light-weighted pressure tubing
Good abrasion resistance
Best elastic material properties
As spray painting tubing predestined for alkyd resin varnish, emulsion paints, natural spirit varnish and polyesther paints and varnish (two-parts compounds).
Technical specification
Material: NBR (butadiene-acrylonitrile rubber)
Colour: black
Temperature range: -20 to +80 °C
Bursting pressure: approx. 4-fold dynamic operating pressure
Electrical characteristics: antistatic interior and exterior, R <106 Ohm
Insert: synthetic fabrics
Design: inside and outside smooth
Marking: grey longitudinal stripes
Item | Image |
Inside Ø mm
|
Außen-Ø mm
|
max. Betr.-Druck1 bar
|
min. Biegeradius mm
|
Einheit m
|
Price Euro* | Buy |
---|
Item
|
|
Inside Ø mm
|
Außen-Ø mm
|
max. Betr.-Druck1 bar
|
min. Biegeradius mm
|
Einheit m
|
Price Euro* |
Buy
|
---|---|---|---|---|---|---|---|---|
12767 |
|
9 | 16 | 25 | 45 | 5 | 225.00 | |
12768 |
|
9 | 16 | 25 | 45 | 10 | 414.00 | |
12769 |
|
9 | 16 | 25 | 45 | 15 | 549.00 |
Page
[1] at +20 °C
