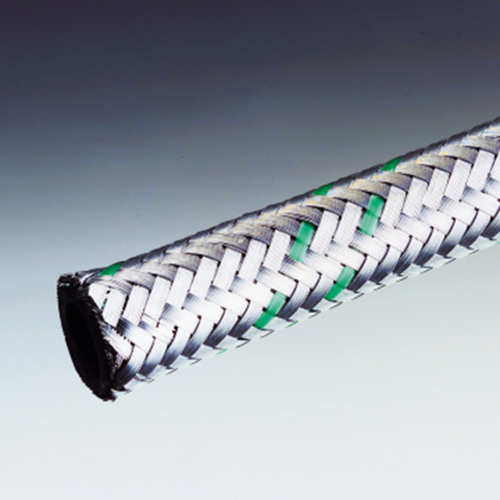

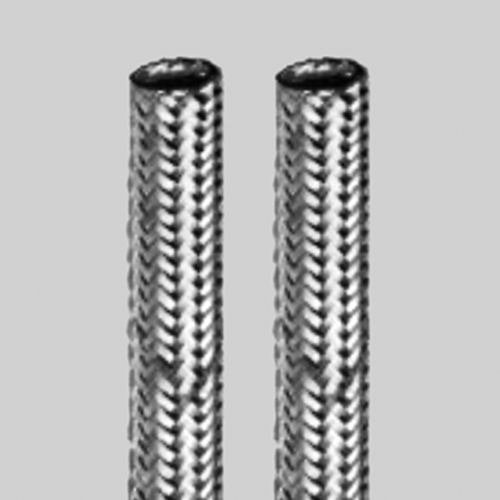

NBR Low-Pressure Tubing - metallic
Product specification Fuel resistant chemical and hydraulic tubing according to DIN 73379... more
Product specification
Fuel resistant chemical and hydraulic tubing according to DIN 73379
Resistant to fluids on mineral oil and glycol base, lubricants, vegetable and animal oils, silicones, dilute acids and alkalis at room temperature, cooling water, and compressed air.
Good abrasion resistance
Good thermal resistance
Technical specification
Material:
Liner: NBR (butadiene-acrylonitrile rubber)
Jacket: pressure support made of zinc-plated steel wire braiding with marking thread
Colour: metallic
Temperature range: -30 to +90 °C
Item | Image |
Inside Ø mm
|
Außen-Ø mm
|
max. Betr.-Druck1 bar
|
min. Biegeradius mm
|
Einheit m
|
Price Euro* | Buy |
---|
Item
|
|
Inside Ø mm
|
Außen-Ø mm
|
max. Betr.-Druck1 bar
|
min. Biegeradius mm
|
Einheit m
|
Price Euro* |
Buy
|
---|---|---|---|---|---|---|---|---|
13127 |
|
4,5 | 9 | 20 | 25 | 5 | 72.00 | |
13128 |
|
4,5 | 9 | 20 | 25 | 10 | 135.00 | |
13129 |
|
5,6 | 10,5 | 20 | 30 | 5 | 81.00 | |
13130 |
|
5,6 | 10,5 | 20 | 30 | 10 | 155.00 | |
13131 |
|
7,5 | 12,5 | 15 | 40 | 5 | 88.00 | |
13132 |
|
7,5 | 12,5 | 15 | 40 | 10 | 167.00 | |
13133 |
|
9,5 | 14,5 | 15 | 50 | 5 | 97.00 | |
13134 |
|
9,5 | 14,5 | 15 | 50 | 10 | 179.00 | |
13135 |
|
11,8 | 17,5 | 10 | 70 | 5 | 113.00 | |
13136 |
|
11,8 | 17,5 | 10 | 70 | 10 | 209.00 | |
13137 |
|
15,3 | 22 | 15 | 80 | 5 | 143.00 | |
13138 |
|
15,3 | 22 | 15 | 80 | 10 | 261.00 | |
13139 |
|
17 | 26 | 10 | 100 | 5 | 190.00 | |
13140 |
|
17 | 26 | 10 | 100 | 10 | 313.00 | |
13141 |
|
22 | 29 | 10 | 150 | 3 | 162.00 | |
13142 |
|
22 | 29 | 10 | 150 | 5 | 244.00 |
Page
[1] at +20 °C
