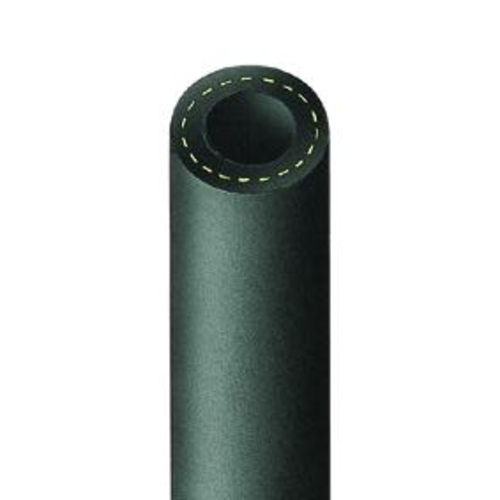

NBR Double-Wall Jacket High-Pressure Tubing, textile braid
Product specification High-pressure hydraulic tubing for conveyance of liquid media on... more
Product specification
High-pressure hydraulic tubing for conveyance of liquid media on mineral and glycol base, mineral and vegetable lubricants, compressed air, cooling water, motor lubricating oils, HD-oils, diesel fuels etc.
Good thermal resistance
Good abrasion resistance
High flame resistance
Good resistance to ozone, aging, and weather
Technical specification
Material:
Liner: NBR (butadiene-acrylonitrile rubber)
Jacket: CR (chloroprene rubber)
Colour: black
Temperature range: -40 to +100 °C; compressed air: up to +70 °C

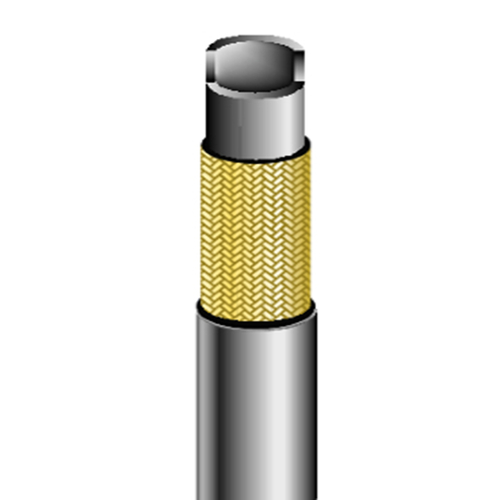

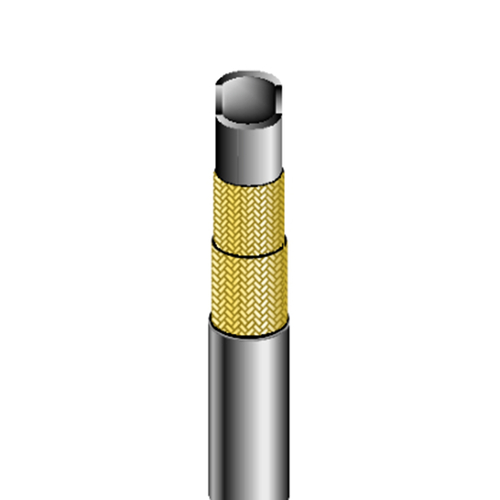

Insert: textile braiding
Bursting pressure: approx. 4-fold dynamic operating pressure
Regulations: DIN EN 854; DIN 20021
Item | Image |
Inside Ø mm
|
Außen-Ø mm
|
max. Betr.-Druck1 bar
|
min. Biegeradius mm
| Ausführung2 |
Einheit m
|
Price Euro* | Buy |
---|
Item
|
|
Inside Ø mm
|
Außen-Ø mm
|
max. Betr.-Druck1 bar
|
min. Biegeradius mm
|
Ausführung2
|
Einheit m
|
Price Euro* |
Buy
|
---|---|---|---|---|---|---|---|---|---|
13007 |
|
4,8 | 11,8 | 80 | 35 | 2TE | 5 | 121.00 | |
13008 |
|
4,8 | 11,8 | 80 | 35 | 2TE | 10 | 223.00 | |
13009 |
|
6,4 | 13,4 | 75 | 40 | 2TE | 5 | 127.00 | |
13010 |
|
6,4 | 13,4 | 75 | 40 | 2TE | 10 | 234.00 | |
13011 |
|
7,9 | 14,9 | 68 | 50 | 2TE | 5 | 132.00 | |
13012 |
|
7,9 | 14,9 | 68 | 50 | 2TE | 10 | 241.00 | |
13013 |
|
9,5 | 16,5 | 63 | 60 | 2TE | 5 | 137.00 | |
13014 |
|
9,5 | 16,5 | 63 | 60 | 2TE | 10 | 253.00 | |
13015 |
|
12,7 | 19,7 | 58 | 70 | 2TE | 5 | 157.00 | |
13016 |
|
12,7 | 19,7 | 58 | 70 | 2TE | 10 | 285.00 | |
13017 |
|
15,9 | 23,9 | 50 | 90 | 2TE | 3 | 127.00 | |
13018 |
|
15,9 | 23,9 | 50 | 90 | 2TE | 5 | 192.00 | |
13019 |
|
19 | 27 | 45 | 110 | 2TE | 3 | 135.00 | |
13020 |
|
19 | 27 | 45 | 110 | 2TE | 5 | 206.00 | |
13021 |
|
25,4 | 34,4 | 40 | 150 | 2TE | 3 | 185.00 | |
13022 |
|
25,4 | 34,4 | 40 | 150 | 2TE | 5 | 283.00 | |
13023 |
|
31,8 | 41 | 35 | 170 | 2TE | 1 | 91.00 | |
13024 |
|
31,8 | 41 | 35 | 170 | 2TE | 3 | 239.00 | |
13027 |
|
6,4 | 14,4 | 145 | 45 | 3TE | 5 | 151.00 | |
13028 |
|
6,4 | 14,4 | 145 | 45 | 3TE | 10 | 278.00 | |
13029 |
|
7,9 | 16,9 | 130 | 55 | 3TE | 5 | 155.00 | |
13030 |
|
7,9 | 16,9 | 130 | 55 | 3TE | 10 | 304.00 | |
13031 |
|
9,5 | 18,5 | 110 | 70 | 3TE | 3 | 116.00 | |
13032 |
|
9,5 | 18,5 | 110 | 70 | 3TE | 5 | 174.00 | |
13033 |
|
12,7 | 21,7 | 93 | 85 | 3TE | 3 | 141.00 |
