Product specification
Optimal mechanical properties
Very high abrasion resistance
Robust and flexible suction and pressure tubing
For conveyance of process media and solutions, slurries, sewage, and liquid manure
Technical specification
Material:
Liner: NR (natural rubber)
Jacket: SBR (styrene-butadiene rubber)
Colour: black
Temperature range: -20 to +70 °C

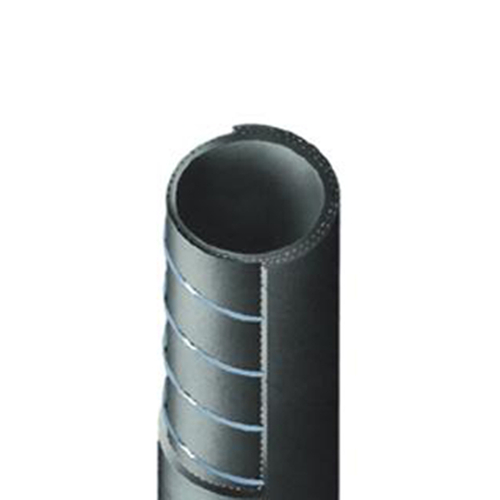

Insert: rayon cord fabric combined with galvanized steel wire spiral
Vacuum resistance: 200 - 400 mbar at +20 ° C

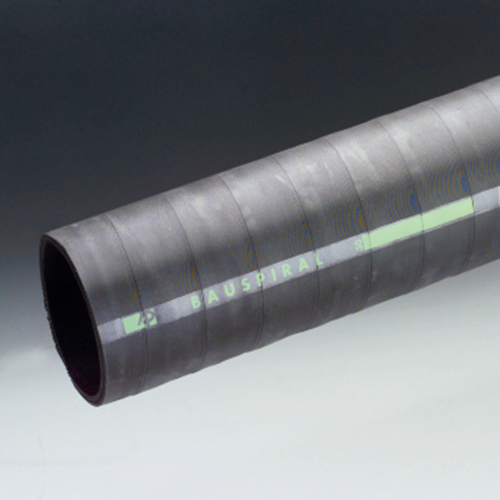

Design: smooth inside, corrugated outside, fabric print
Marking: green spiral-shaped stripe
| Item | Image |
Inside Ø mm
|
Außen-Ø mm
|
max. Betr.-Druck1 bar
|
Vakuum1 mbar
|
min. Biegeradius mm
|
Einheit m
|
Price Euro* | Buy |
|---|
Item
|
|
Inside Ø mm
|
Außen-Ø mm
|
max. Betr.-Druck1 bar
|
Vakuum1 mbar
|
min. Biegeradius mm
|
Einheit m
|
Price Euro* |
Buy
|
|---|---|---|---|---|---|---|---|---|---|
| 12554 |
|
50 | 63 | 10 | 200 | 350 | 1 | 69.00 | |
| 12555 |
|
50 | 63 | 10 | 200 | 350 | 3 | 174.00 | |
| 12556 |
|
75 | 88 | 7 | 200 | 525 | 1 | 97.00 | |
| 12557 |
|
75 | 88 | 7 | 200 | 525 | 3 | 239.00 | |
| 12558 |
|
90 | 106 | 6 | 200 | 630 | 1 | 118.00 | |
| 12559 |
|
90 | 106 | 6 | 200 | 630 | 3 | 294.00 | |
| 12560 |
|
100 | 116 | 6 | 200 | 700 | 1 | 132.00 | |
| 12561 |
|
100 | 116 | 6 | 200 | 700 | 3 | 324.00 | |
| 12562 |
|
110 | 126 | 6 | 400 | 800 | 1 | 141.00 | |
| 12563 |
|
110 | 126 | 6 | 400 | 800 | 3 | 343.00 | |
| 12564 |
|
150 | 170 | 6 | 400 | 1.100 | 1 | 179.00 | |
| 12565 |
|
150 | 170 | 6 | 400 | 1.100 | 3 | 455.00 |
[1] at +20 °C
