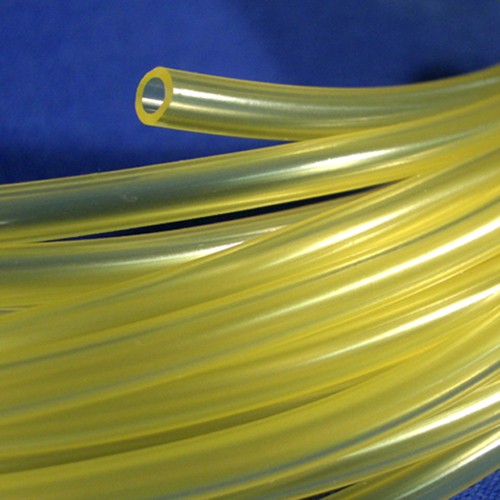

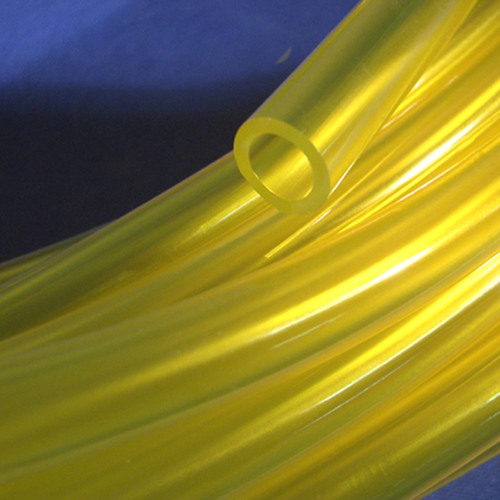

PUR Fuel and Lubricant Tubing

Preview: PUR Fuel and Lubricant Tubing Preview: PUR Fuel and Lubricant Tubing
PUR Fuel and Lubricant Tubing
PUR Fuel and Lubricant Tubing


Description General Information
Description
Application area Conveyance of oils, liquid fuels and lubricants in laboratories, pilot and... more
Close menu

Application area

Conveyance of oils, liquid fuels and lubricants in laboratories, pilot and industrial plants

Product specification

Thick-walled, flexible and elastic chemical tubing, particularly for non-aqueous media, free of extractable constituents.

Extremely high resistance to abrasion, tearing, aging, and weather.

Chemically resistant to gasolines, bitumen, kerosine, aliphatic hydrocarbons, mineral oils, lubricants, for a short time also to aromatic hydrocarbons. Not usable for all halogenated solvents, water and aqueous solutions.

Technical specification

Material: PUR (polyurethane TYGON®-C-210-A)

Colour: yellow, translucent

Shore hardness A: 82° (ASTM D2240)

Temperature range: -40 to +79 °C, for a short time +93 °C

Density: 1.20 g/cm3

Embrittlement temperature: -73 °C

Tensile strength: 41.7 MPa (ASTM D412)

Tear resistance: 83.1 kN/m (ASTM D1004)

Ultimate elongation: 500 % (ASTM D412)

Tensile modulus: 5.5 MPa at 100 % Elongation; 10.4 MPa at 300 % Elongation

Compression set: 68 % at +70 °C / 22 h

Dielectric strength: 12.9 kV/mm (ASTM D149)

Water absorption: 1.12 % at +23 °C / 24 h

Resistance to media: excellent resistance to strong alkaline detergents

Regulations: FDA 21 CFR §177.1680 and §177.2600

General Information
more
Close menu
No additional information available.
