PUR Lumen Chemical Tubing - 3 lumen, calibrated
Product specification Three tubes combined into a tube unit and sealed together, colours:... more
Product specification

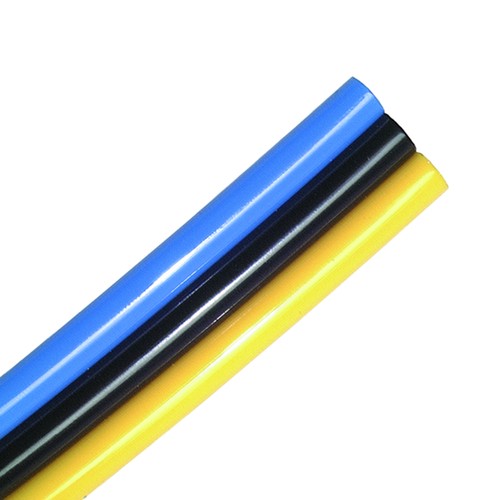

Three tubes combined into a tube unit and sealed together, colours: blue, black and natural.
High elasticity and flexibility
Flexible also at -40 °C
Smallest bending radius, resistant to kinking and tearing
Very good mechanical stability
Resistant to weather, ozone and aging
Calibrated according to CETOP standard
Good chemical resistance to gasoline, cyclohexane, diesel oil, isooctane, kerosine.
UV-resistant
Technical specification
Material: PUR (polyurethane)
Colour: blue/black/natural
Shore hardness A: 98° (DIN 53505)
Temperature range: -40 to +80 °C, for a short time +120 °C
Design: triple lumen tubing
Item | Image |
Inside Ø mm
|
Außen-Ø mm
|
max. Betr.-Druck1 bar
|
min. Biegeradius mm
|
Einheit m
|
Price Euro* | Buy |
---|
Item
|
|
Inside Ø mm
|
Außen-Ø mm
|
max. Betr.-Druck1 bar
|
min. Biegeradius mm
|
Einheit m
|
Price Euro* |
Buy
|
---|---|---|---|---|---|---|---|---|
302741 |
|
2,5 | 4 | 18 | 12 | 5 | 67.00 | |
302742 |
|
2,5 | 4 | 18 | 12 | 15 | 165.00 | |
302743 |
|
4 | 6 | 13 | 20 | 5 | 110.00 | |
302744 |
|
4 | 6 | 13 | 20 | 15 | 266.00 | |
302745 |
|
6 | 8 | 12 | 30 | 5 | 114.00 | |
302746 |
|
6 | 8 | 12 | 30 | 15 | 281.00 | |
302747 |
|
8 | 10 | 8 | 60 | 5 | 133.00 | |
302748 |
|
8 | 10 | 8 | 60 | 15 | 319.00 |
Page
[1] at +20 °C
