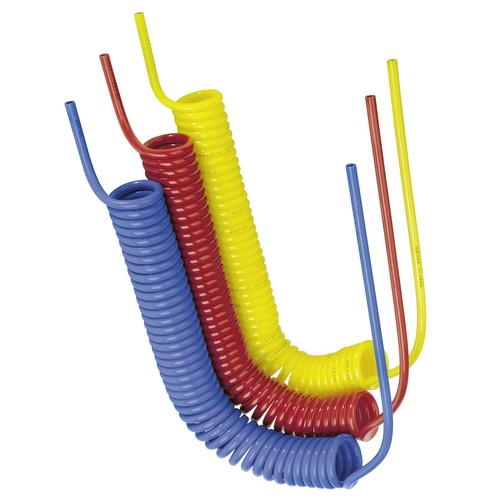

PUR Spiral Tubing without Fittings
Product specification Spiral tubing with strong elastic force Very good kink resistance... more
Product specification
Spiral tubing with strong elastic force
Very good kink resistance
Highest elasticity and flexibility
Best mechanical stability and tearing strength
Resistant to weather, ozone and aging
Calibrated according to CETOP standard
Good chemical resistance to gasoline, cyclohexane, diesel oil, isooctane, kerosine.
UV-resistant
Technical specification
Material: PUR (polyurethane)
Colour: blue, yellow, red
Shore hardness A: 98° (DIN 53505)
Temperature range: -20 to +60 °C
Max. operating pressure: 10 bar at +20 °C
Connection nozzles: on one side 100 mm; on the other side 500 mm
Item | Image |
Inside Ø mm
|
Außen-Ø mm
|
Spiral-Ø außen mm
|
Blocklänge mm
|
Arbeitslänge m
| Farbe |
Einheit Stück
|
Price Euro* | Buy |
---|
Item
|
|
Inside Ø mm
|
Außen-Ø mm
|
Spiral-Ø außen mm
|
Blocklänge mm
|
Arbeitslänge m
|
Farbe
|
Einheit Stück
|
Price Euro* |
Buy
|
---|---|---|---|---|---|---|---|---|---|---|
302757 |
|
4 | 6 | 33 | 370 | 3 | blau | 1 | 86.00 | |
302758 |
|
4 | 6 | 33 | 480 | 6 | blau | 1 | 88.00 | |
302759 |
|
4 | 6 | 33 | 370 | 3 | gelb | 1 | 86.00 | |
302760 |
|
4 | 6 | 33 | 480 | 6 | gelb | 1 | 88.00 | |
302761 |
|
4 | 6 | 33 | 370 | 3 | rot | 1 | 86.00 | |
302762 |
|
4 | 6 | 33 | 480 | 6 | rot | 1 | 88.00 | |
302763 |
|
5 | 8 | 36 | 320 | 3 | blau | 1 | 99.00 | |
302764 |
|
5 | 8 | 36 | 610 | 6 | blau | 1 | 105.00 | |
302765 |
|
5 | 8 | 36 | 320 | 3 | gelb | 1 | 99.00 | |
302766 |
|
5 | 8 | 36 | 610 | 6 | gelb | 1 | 105.00 | |
302767 |
|
5 | 8 | 36 | 320 | 3 | rot | 1 | 99.00 | |
302768 |
|
5 | 8 | 36 | 610 | 6 | rot | 1 | 105.00 | |
330799 |
|
6,5 | 10 | 52 | 320 | 3 | blau | 1 | 112.00 | |
330800 |
|
6,5 | 10 | 52 | 550 | 6 | blau | 1 | 127.00 | |
330801 |
|
6,5 | 10 | 52 | 660 | 8 | blau | 1 | 148.00 | |
330802 |
|
6,5 | 10 | 52 | 320 | 3 | gelb | 1 | 112.00 | |
330803 |
|
6,5 | 10 | 52 | 550 | 6 | gelb | 1 | 127.00 | |
330804 |
|
6,5 | 10 | 52 | 660 | 8 | gelb | 1 | 148.00 | |
330805 |
|
6,5 | 10 | 52 | 320 | 3 | rot | 1 | 112.00 | |
330806 |
|
6,5 | 10 | 52 | 550 | 6 | rot | 1 | 127.00 | |
330807 |
|
6,5 | 10 | 52 | 660 | 8 | rot | 1 | 148.00 | |
330808 |
|
8 | 12 | 65 | 270 | 3 | blau | 1 | 127.00 | |
330809 |
|
8 | 12 | 65 | 550 | 6 | blau | 1 | 148.00 | |
330810 |
|
8 | 12 | 65 | 620 | 8 | blau | 1 | 176.00 | |
330811 |
|
8 | 12 | 65 | 270 | 3 | gelb | 1 | 127.00 |
