Application area
Conveyance of neutral, liquid, and gaseous media, particularly of combustible fluids at systems in motion or under vibration such as hydraulic and pneumatic controls of robot systems, automated metering systems in industrial plants as well as in experimental prototype construction and experimental set-ups in physics, biotechnology, chemistry, and medical engineering.
Product specification
Continuously coiled, extremely light-weighted, flexible, dimensionally stable, and non-combustible safety PUR tubing, coloured blue
Kinking-resistant, with high long-term recoil spring power (also at continuous load), abrasion-resistant.
Resistant to aging, free of plasticizers
Robust to effects of light and ozone
Resistant to gasoline, cyclohexane, diesel oil, isooctane, kerosine, and aqueous salt solutions.

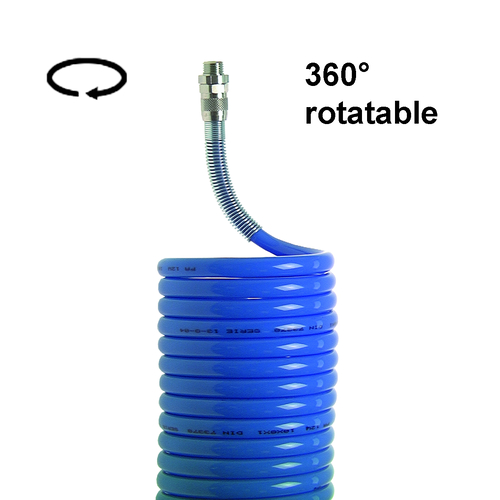

On both sides with reinforced ends each and completely mounted rotatable G 1/4" or G 3/8" threaded couplings.
Delivered in practice-proven dimensions.
Technical specification
Material: PUR (polyurethane), polyester-based
Colour: blue
Shore hardness A: 85° ±5°
Temperature range: -20 to +60 °C
Max. operating pressure: 10 bar at +20 °C
Connection nozzles: on one side 100 mm; on the other side 500 mm
| Item | Image |
Inside Ø mm
|
Außen-Ø mm
| Außengewinde |
Spiral-Ø innen mm
|
Arbeitslänge m
|
Einheit Stück
|
Price Euro* | Buy |
|---|
Item
|
|
Inside Ø mm
|
Außen-Ø mm
|
Außengewinde
|
Spiral-Ø innen mm
|
Arbeitslänge m
|
Einheit Stück
|
Price Euro* |
Buy
|
|---|---|---|---|---|---|---|---|---|---|
| 47516 |
|
4 | 6 | G 1/4" | 30 | 3 | 1 | 55.00 | |
| 47517 |
|
4 | 6 | G 1/4" | 30 | 6 | 1 | 65.00 | |
| 47518 |
|
4 | 6 | G 1/4" | 30 | 8 | 1 | 68.00 | |
| 47507 |
|
5 | 8 | G 1/4" | 34 | 3 | 1 | 61.00 | |
| 47508 |
|
5 | 8 | G 1/4" | 34 | 6 | 1 | 70.00 | |
| 47509 |
|
5 | 8 | G 1/4" | 34 | 8 | 1 | 78.00 | |
| 47510 |
|
6,5 | 10 | G 1/4" | 42 | 3 | 1 | 72.00 | |
| 47511 |
|
6,5 | 10 | G 1/4" | 42 | 6 | 1 | 86.00 | |
| 47512 |
|
6,5 | 10 | G 1/4" | 42 | 8 | 1 | 107.00 | |
| 47513 |
|
8 | 12 | G 3/8" | 60 | 3 | 1 | 88.00 | |
| 47514 |
|
8 | 12 | G 3/8" | 60 | 6 | 1 | 106.00 | |
| 47515 |
|
8 | 12 | G 3/8" | 60 | 8 | 1 | 134.00 |
