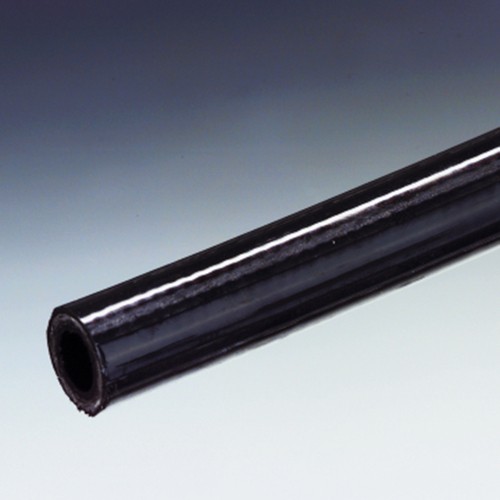

PUR/LDPE Double-Wall Jacket High-Pressure Tubing
Product specification
High pressure hydraulic tubing for conveyance of hardly inflammable hydraulic fluids on phosphate ester base, fluids on mineral oil and glycol base, mineral lubricants, cooling agents, water up to +70 °C, dyes, various solvents, fuels, carbonic acid, compressed air, frigen, nitrogen, natural gas etc.
High mechanical stability.
Excellent resistance to abrasion.
Good resistance to aging and ozone.
Low permeability to gas.
The jacket is said to have good resistance to weather, good impact toughness, and best abrasion resistance.
UV-resistant.
Technical specification
Material:
Liner: PUR (polyurethane)
Jacket: LDPE (low density polyethylene)
Colour: black
Temperature range: -54 to +100 °C

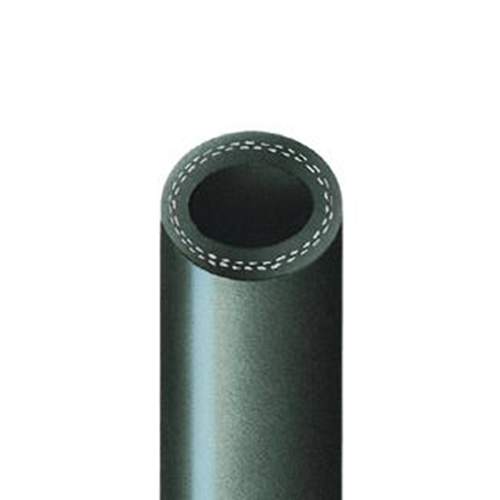

Insert: 2-fold synthetic fibre braiding
Bursting pressure: 4-fold dynamic operating pressure
Item | Image |
Inside Ø mm
|
Außen-Ø mm
|
max. Betr.-Druck1 bar
|
min. Biegeradius mm
|
Einheit m
|
Price Euro* | Buy |
---|
Item
|
|
Inside Ø mm
|
Außen-Ø mm
|
max. Betr.-Druck1 bar
|
min. Biegeradius mm
|
Einheit m
|
Price Euro* |
Buy
|
---|---|---|---|---|---|---|---|---|
13101 |
|
4,8 | 10,9 | 207 | 20 | 3 | 116.00 | |
13102 |
|
4,8 | 10,9 | 207 | 20 | 5 | 179.00 | |
13103 |
|
6,4 | 13 | 207 | 32 | 3 | 127.00 | |
13104 |
|
6,4 | 13 | 207 | 32 | 5 | 192.00 | |
13105 |
|
7,9 | 15,1 | 172 | 45 | 3 | 137.00 | |
13106 |
|
7,9 | 15,1 | 172 | 45 | 5 | 211.00 | |
13107 |
|
9,5 | 16,8 | 155 | 51 | 3 | 155.00 | |
13108 |
|
9,5 | 16,8 | 155 | 51 | 5 | 236.00 | |
13109 |
|
12,7 | 20,8 | 138 | 77 | 1 | 88.00 | |
13110 |
|
12,7 | 20,8 | 138 | 77 | 3 | 220.00 | |
13111 |
|
19 | 27,2 | 86 | 127 | 1 | 121.00 |
[1] at +20 °C
