Product specification
For peristaltic pumps with tubing cassettes.

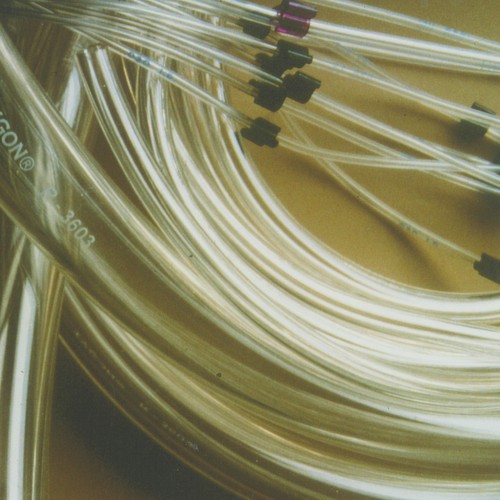

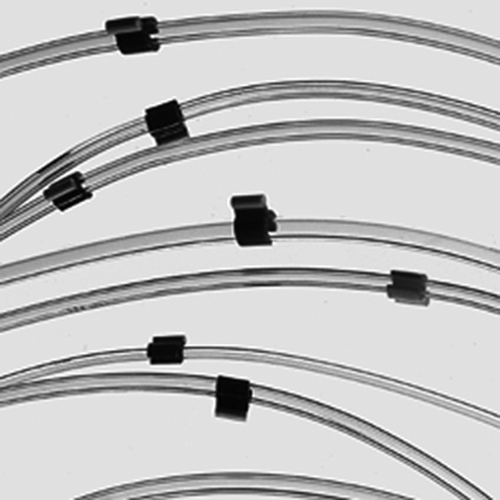

Durable precision pump tubing for routine use, made of dimensionally stable material for conveyance of aqueous media in the range of pH 1 to 10; fitted with three stoppers each for mounting in tubing cassettes; colour-coded for clearly organized use.
Usual applications in laboratories, non-toxic, non-aging, non-oxidizing, autoclavable.
Good resistance to acids and alkalis.
Technical specification
Material: TYGON®-R-3607 or TYGON®-LMT-55
Colour: crystal-clear
Shore hardness A: 55° ±5° (DIN 53505)
Temperature range: -45 to +65 °C (for a short period +85 °C)
Sterilization: autoclavable (+121 °C)

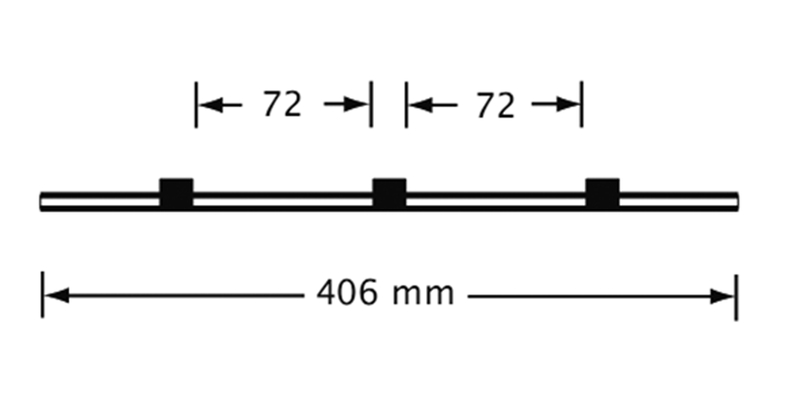

Fixed length: 406 mm, 3 coloured stopper, stopper distance 72 mm
| Item | Image |
Inside Ø mm
|
Außen-Ø mm
|
Wandstärke mm
| Farbcode |
Einheit Stück
|
Price Euro* | Buy |
|---|
Item
|
|
Inside Ø mm
|
Außen-Ø mm
|
Wandstärke mm
|
Farbcode
|
Einheit Stück
|
Price Euro* |
Buy
|
|---|---|---|---|---|---|---|---|---|
| 43734 |
|
0,19 | 2,01 | 0,91 | orange/rot | 6 | 196.00 | |
| 43735 |
|
0,25 | 2,07 | 0,91 | orange/blau | 6 | 196.00 | |
| 43736 |
|
0,38 | 2,2 | 0,91 | orange/grün | 6 | 196.00 | |
| 43737 |
|
0,44 | 2,26 | 0,91 | grün/gelb | 6 | 196.00 | |
| 43738 |
|
0,51 | 2,33 | 0,91 | orange/gelb | 6 | 196.00 | |
| 43739 |
|
0,57 | 2,39 | 0,91 | weiß/gelb | 6 | 196.00 | |
| 43740 |
|
0,64 | 2,46 | 0,91 | orange/weiß | 6 | 196.00 | |
| 43741 |
|
0,76 | 2,48 | 0,86 | schwarz | 6 | 196.00 | |
| 43742 |
|
0,89 | 2,61 | 0,86 | orange | 6 | 196.00 | |
| 43743 |
|
0,95 | 2,67 | 0,86 | weiß/schwarz | 6 | 196.00 | |
| 43744 |
|
1,02 | 2,74 | 0,86 | weiß | 6 | 196.00 | |
| 43745 |
|
1,09 | 2,81 | 0,86 | weiß/rot | 6 | 196.00 | |
| 43746 |
|
1,14 | 2,86 | 0,86 | rot | 6 | 196.00 | |
| 43747 |
|
1,22 | 2,94 | 0,86 | rot/grau | 6 | 196.00 | |
| 43748 |
|
1,3 | 3,02 | 0,86 | grau | 6 | 196.00 | |
| 43749 |
|
1,42 | 3,14 | 0,86 | gelb | 6 | 196.00 | |
| 43750 |
|
1,52 | 3,24 | 0,86 | gelb/blau | 6 | 196.00 | |
| 43751 |
|
1,65 | 3,37 | 0,86 | blau | 6 | 196.00 | |
| 43752 |
|
1,75 | 3,47 | 0,86 | blau/grün | 6 | 196.00 | |
| 43753 |
|
1,85 | 3,57 | 0,86 | grün | 6 | 196.00 | |
| 43754 |
|
2,06 | 3,78 | 0,86 | violett | 6 | 196.00 | |
| 43755 |
|
2,29 | 4,01 | 0,86 | violett/schwarz | 6 | 196.00 | |
| 43756 |
|
2,54 | 4,26 | 0,86 | violett/orange | 6 | 196.00 | |
| 43757 |
|
2,79 | 4,51 | 0,86 | violett/weiß | 6 | 196.00 | |
| 43709 |
|
3,17 | 4,89 | 0,86 | schwarz/weiß | 6 | 196.00 |
