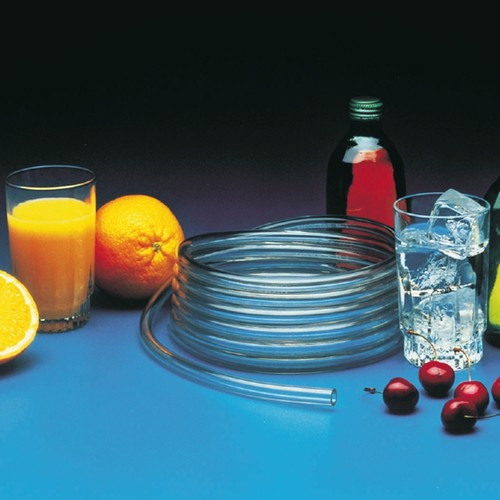

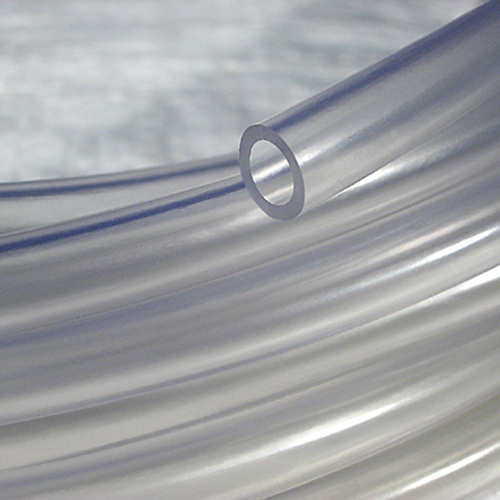

TYGON®-Tubing for Food - FDA (compliant to REACH and RoHS)

Application area Aseptic filling, condiment dispensing, dairy processing, vitamin and flavor... more

Application area

Aseptic filling, condiment dispensing, dairy processing, vitamin and flavor concentrate systems, soft-serve dispensing

Product specification

The new formulation does not contain any phthalates and is compatible with foods (also with a high oil content), milk and dairy products

Smooth, non-porous bore will not trap particles or promote bacterial growth.

Resistant to harsh alkaline cleaners and sanitizers

Excellent alternative to rigid piping systems

Contains no BPA or phthalates

Technical specification

Material: TYGON^® S3^® E-3603

Colour: crystal-clear

Shore hardness A: 56°

Temperature range: -36 to +74 °C

Density: 1.2 g/cm³

Tensile strength: 12.1 MPa (ASTM D412)

Ultimate elongation: 425 % (ASTM D412)

Tear resistance: 31 kN/m (ASTM D1004)

Tensile modulus: 4.0 MPa at 100 % elongation

Water Absorption: 0.21 % at +23 °C / 24 h

Compression Set: 64 % at +70 °C / 22 hours

Regulations: FDA, NSF 51, USP Class VI, REACH, EG 1935/2004 and EU 10/2011

No additional information available.

Item	Inside Ø mm	Außen-Ø mm	max. Betr.-Druck¹ bar	Einheit m	Price Euro*
24705	0,8	2,4	6,9	3	30.00
24706	0,8	2,4	6,9	9	62.00
24707	0,8	2,4	6,9	15	90.00
24708	1,6	3,2	4,1	3	35.00
24709	1,6	3,2	4,1	9	78.00
24710	1,6	3,2	4,1	15	100.00
92334	1,6	4,8	3,1	3	50.00
92335	1,6	4,8	3,1	9	128.00
K92335-15	1,6	4,8	3,1	15	180.00
92344	2,4	4	2	3	41.00
92345	2,4	4	2	9	123.00
K92345	2,4	4	2	15	196.00
92346	2,4	5,6	3,8	3	61.00
92347	2,4	5,6	3,8	9	157.00
K92347	2,4	5,6	3,8	15	222.00
24711	3,2	4,8	2,3	3	46.00
24712	3,2	4,8	2,3	9	96.00
24713	3,2	4,8	2,3	15	120.00
24714	3,2	6,4	4,1	3	65.00
24715	3,2	6,4	4,1	9	167.00
24716	3,2	6,4	4,1	15	222.00
92356	4	5,6	1,4	3	50.00
92357	4	5,6	1,4	9	108.00
K92357	4	5,6	1,4	15	162.00
24717	4	7,2	3,4	3	68.00
