Product specification

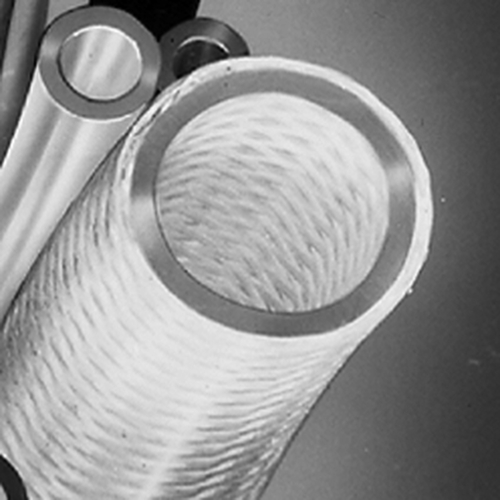

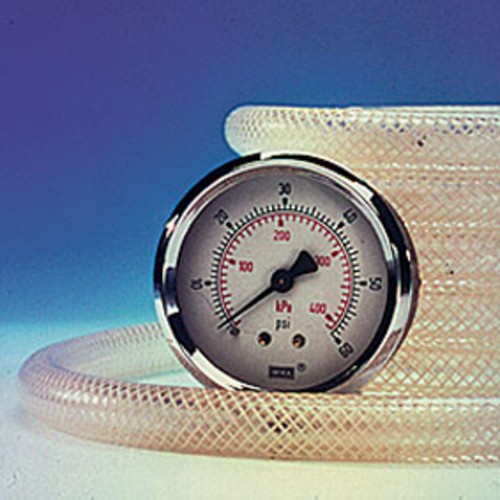

A special pressure tubing for food industry as well as for milk and milk products. Excellent resistance to strong alkaline detergents. The tubing meets the US FDA requirements. Long working life, because it does neither age nor oxidize. It is less permeable than rubber, the material being denser. The tube is non-toxic, odourless and tasteless, and not-soiling; smooth, polished inner wall, therefore no formation of deposits and consequently no influence of process results. Crystal-clear, soft and flexible.
Comment: This product is not RoHS- and REACH-compliant, because the proportion of plasticisers (DEHP) is more than 0.1 %.
Technical specification
Material: TYGON®-B-44-4X-IB-US
Colour: crystal-clear
Shore hardness A: 65° (ASTM D2240-02)
Temperature range: -20 to +74 °C
Density: 1.21 g/cm3
Embrittlement temperature: -44 °C
Tensile strength: 14.5 MPa (ASTM D412)
Tear resistance: 35 kN/m (ASTM D1004)
Ultimate elongation: 450 % (ASTM D412-98)
Tensile modulus: 7.9 MPa at 100 % Elongation
Compression set: 62 % at +70 °C / 22 h
Dielectric strength: 20.3 kV/mm
Water absorption: 0.15 % at +23 °C / 24 h
Resistance to media: excellent resistance to strong alkaline detergents
Regulations: FDA 21 CFR §175.300, 3-A® Plastics Standard, NSF 51
| Item | Image |
Inside Ø mm
|
Außen-Ø mm
|
max. Betr.-Druck1 bar
|
Platzdruck bar
|
Einheit m
|
Price Euro* | Buy |
|---|
Item
|
|
Inside Ø mm
|
Außen-Ø mm
|
max. Betr.-Druck1 bar
|
Platzdruck bar
|
Einheit m
|
Price Euro* |
Buy
|
|---|---|---|---|---|---|---|---|---|
| 92300 |
|
6,4 | 11,1 | 17 | 70 | 1 | 42.00 | |
| 92301 |
|
6,4 | 11,1 | 17 | 70 | 3 | 113.00 | |
| 92320 |
|
6,4 | 11,1 | 17 | 70 | 6 | 191.00 | |
| 92302 |
|
9,5 | 15,9 | 11 | 41 | 1 | 65.00 | |
| 92303 |
|
9,5 | 15,9 | 11 | 41 | 3 | 174.00 | |
| 92321 |
|
9,5 | 15,9 | 11 | 41 | 6 | 295.00 | |
| 92304 |
|
12,7 | 17,5 | 14 | 55 | 1 | 58.00 | |
| 92305 |
|
12,7 | 17,5 | 14 | 55 | 3 | 156.00 | |
| 92322 |
|
12,7 | 17,5 | 14 | 55 | 6 | 265.00 | |
| 92306 |
|
15,9 | 22,2 | 11 | 37 | 1 | 82.00 | |
| 92307 |
|
15,9 | 22,2 | 11 | 37 | 3 | 220.00 | |
| 92323 |
|
15,9 | 22,2 | 11 | 37 | 6 | 373.00 | |
| 92308 |
|
19 | 25,4 | 10 | 33 | 1 | 95.00 | |
| 92309 |
|
19 | 25,4 | 10 | 33 | 3 | 254.00 | |
| 92324 |
|
19 | 25,4 | 10 | 33 | 6 | 433.00 | |
| 92312 |
|
38,1 | 50,8 | 5,1 | 20 | 1 | 372.00 | |
| 92313 |
|
38,1 | 50,8 | 5,1 | 20 | 3 | 1,002.00 | |
| 92326 |
|
38,1 | 50,8 | 5,1 | 20 | 6 | 1,704.00 |
[1] at +20 °C
