Product specification

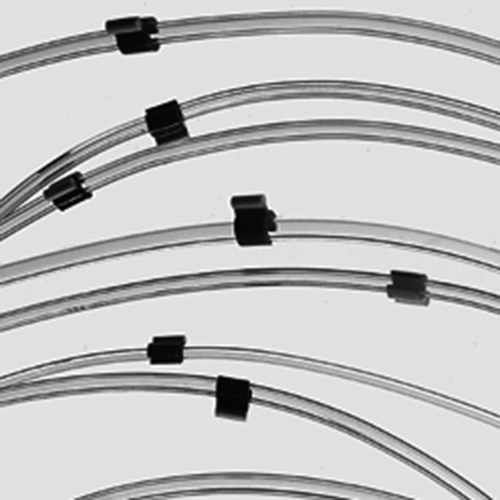

For precise metering of reagents in micro analytics and micro process control.
Resistant precision chemical pump tubing made of a special heavy-duty PVC formulation for routine use for conveyance of aqueous media and salt solutions, alcohols, mineral acids and alkaline lyes, also concentrated ones.
The used raw materials meet the recommendations of the BfR and are approved.
During formulation development the testing procedures according to USP XXI Class VI are performed. The tubing standard is in conformity with these regulations. The production of THOMAFLUID® micro pump tubing meets the requirements of the US Federal Standard 209 B, air purity class 10000.
Technical specification
Material: PVC-P (polyvinyl chloride, soft)
Colour: crystal-clear
Shore hardness A: 65° ±5° (DIN 53505)
Temperature range: -10 to +60 °C
Accuracy of conveyance: ±5 % (normal tolerance)

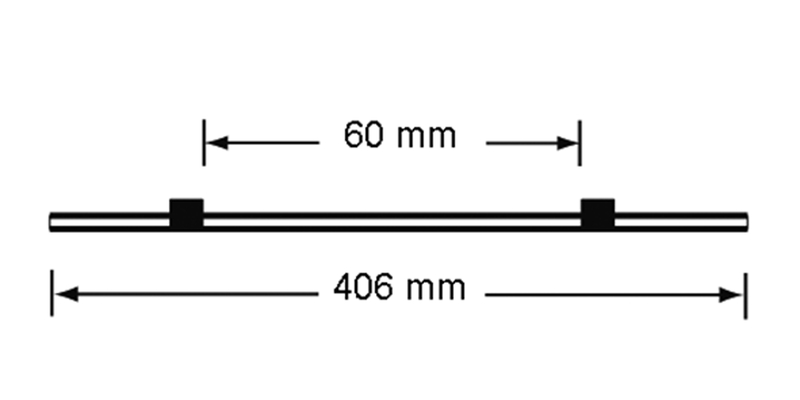

Fixed length: 406 mm, 2 coloured stopper, stopper distance 60 mm
| Item | Image |
Inside Ø mm
|
Außen-Ø mm
| Farbcode |
Einheit Stück
|
Price Euro* | Buy |
|---|
Item
|
|
Inside Ø mm
|
Außen-Ø mm
|
Farbcode
|
Einheit Stück
|
Price Euro* |
Buy
|
|---|---|---|---|---|---|---|---|
| 27009 |
|
0,13 | 1,95 | orange/schwarz | 6 | 71.00 | |
| 27010 |
|
0,13 | 1,95 | orange/schwarz | 12 | 122.00 | |
| 27011 |
|
0,19 | 2,01 | orange/rot | 6 | 71.00 | |
| 27012 |
|
0,19 | 2,01 | orange/rot | 12 | 122.00 | |
| 27013 |
|
0,25 | 2,07 | orange/blau | 6 | 71.00 | |
| 27014 |
|
0,25 | 2,07 | orange/blau | 12 | 122.00 | |
| 27015 |
|
0,38 | 2,2 | orange/grün | 6 | 71.00 | |
| 27016 |
|
0,38 | 2,2 | orange/grün | 12 | 122.00 | |
| 27019 |
|
0,64 | 2,32 | orange/weiß | 6 | 71.00 | |
| 27020 |
|
0,64 | 2,32 | orange/weiß | 12 | 122.00 | |
| 27021 |
|
0,76 | 2,44 | schwarz | 6 | 71.00 | |
| 27022 |
|
0,76 | 2,44 | schwarz | 12 | 122.00 | |
| 27023 |
|
0,89 | 2,57 | orange | 6 | 71.00 | |
| 27024 |
|
0,89 | 2,57 | orange | 12 | 122.00 | |
| 27025 |
|
1,02 | 2,7 | weiß | 6 | 71.00 | |
| 27026 |
|
1,02 | 2,7 | weiß | 12 | 122.00 | |
| 27124 |
|
1,3 | 2,98 | grau | 6 | 71.00 | |
| 27125 |
|
1,3 | 2,98 | grau | 12 | 122.00 | |
| 27126 |
|
1,42 | 3,1 | gelb | 6 | 71.00 | |
| 27127 |
|
1,42 | 3,1 | gelb | 12 | 122.00 | |
| 27128 |
|
1,52 | 3,2 | gelb/blau | 6 | 71.00 | |
| 27129 |
|
1,52 | 3,2 | gelb/blau | 12 | 122.00 | |
| 27130 |
|
1,65 | 3,33 | blau | 6 | 71.00 | |
| 27131 |
|
1,65 | 3,33 | blau | 12 | 122.00 | |
| 27132 |
|
1,86 | 3,54 | grün | 6 | 71.00 |
