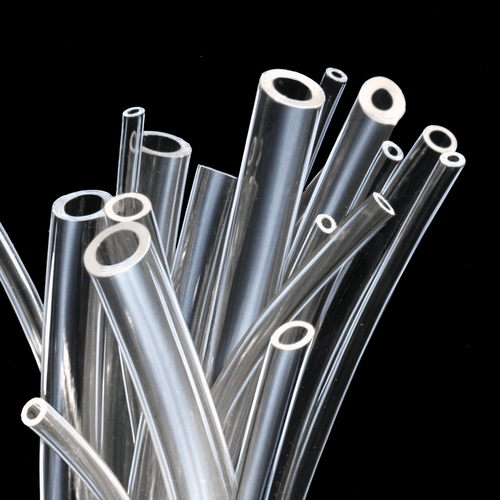

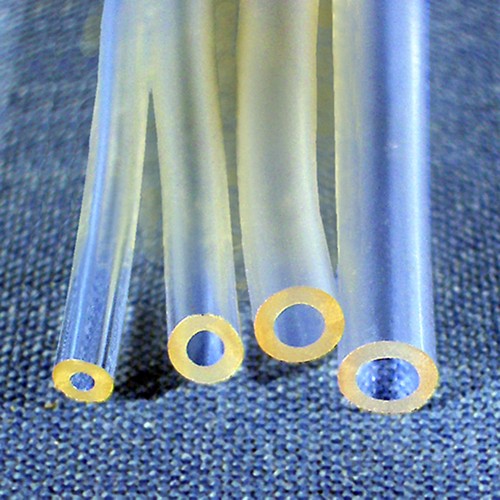

PVC Vinyl Pump Tubing

Preview: PVC Vinyl Pump Tubing Preview: PVC Vinyl Pump Tubing
PVC Vinyl Pump Tubing
PVC Vinyl Pump Tubing


Description General Information
Description
Product specification Conveying tubing Kinking-resistant and highly flexible Absolutely... more
Close menu

Product specification

Conveying tubing

Kinking-resistant and highly flexible

Absolutely smooth surface, counteracting concentration of bacteria

Non-toxic, free from pyrogenes, and compatible with blood (tolerated by blood)

Thermosensitive, immediately adapting to body temperature without decrease in lumen size

Application area medical engineering

Technical specification

Material: PVC-P (polyvinyl chloride, soft)

Colour: crystal-clear

Shore hardness A: 58°

Mechanical behaviour: very soft and elastic

Temperature range: -30 to +60 °C

Density: 1.20 g/cm3

Elongation at break: 400 %

Tensile strength: 14.3 MPa

Tolerance: DIN ISO 3302-1 E2

General Information
more
Close menu
No additional information available.
