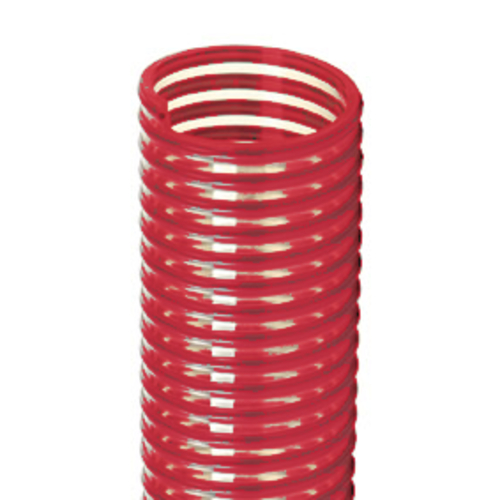

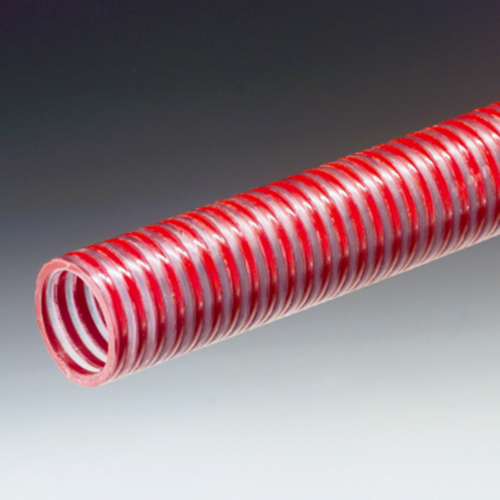

Product specification
Suction and pressure tubing
Recommended for fat free food
Technical specification
Material: PVC-P (polyvinyl chloride, soft)
Colour: transparent
Temperature range: -10 to +60 °C
Insert: PVC-U rigid spiral, red
Vacuum resistance: 20 mbar at +20 °C
Bursting pressure: 3-fold operating pressure
Design: inside smooth, outside light corrugated
| Item | Image |
Inside Ø mm
|
Außen-Ø mm
|
max. Betr.-Druck1 bar
|
min. Biegeradius mm
|
Einheit m
|
Price Euro* | Buy |
|---|
Item
|
|
Inside Ø mm
|
Außen-Ø mm
|
max. Betr.-Druck1 bar
|
min. Biegeradius mm
|
Einheit m
|
Price Euro* |
Buy
|
|---|---|---|---|---|---|---|---|---|
| 12389 |
|
30 | 37,8 | 8 | 190 | 5 | 107.00 | |
| 12390 |
|
30 | 37,8 | 8 | 190 | 10 | 178.00 | |
| 12391 |
|
35 | 43,4 | 7 | 230 | 5 | 130.00 | |
| 12392 |
|
35 | 43,4 | 7 | 230 | 10 | 209.00 | |
| 12393 |
|
40 | 49,2 | 7 | 270 | 5 | 146.00 | |
| 12394 |
|
40 | 49,2 | 7 | 270 | 10 | 236.00 | |
| 12395 |
|
45 | 54,8 | 7 | 310 | 5 | 176.00 | |
| 12396 |
|
45 | 54,8 | 7 | 310 | 10 | 290.00 | |
| 12397 |
|
50 | 60,6 | 6 | 350 | 5 | 195.00 | |
| 12398 |
|
50 | 60,6 | 6 | 350 | 10 | 321.00 |
[1] at +20 °C
