Application area
Plant construction, process engineering, machine construction, process technology, hydraulic and pneumatic piping, engineering operations and maintenance
Product specification
High pressure resistance
Low weight
Robust type
High flexibility
Technical specification

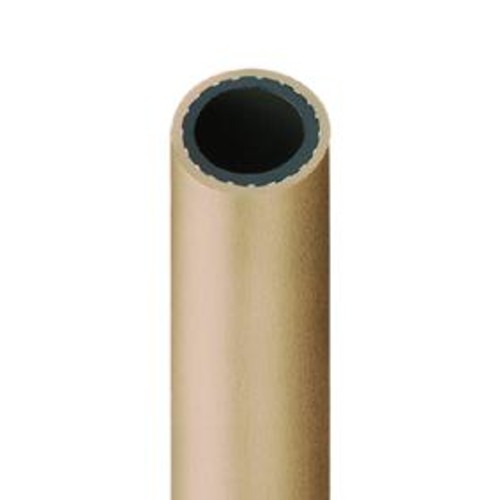

Material: PVC-P (polyvinyl chloride, soft)
Colour:
Liner: black, smooth
Jacket: beige, smooth
Temperature range: -20 to +60 °C
Max. operating pressure: 20 bar at +20 °C
Bursting pressure: 60 bar at +20 °C
Design: inside and outside smooth
Marking: PN 20 bar
| Item | Image |
Inside Ø mm
|
Außen-Ø mm
|
max. Betr.-Druck1 bar
|
Einheit m
|
Price Euro* | Buy |
|---|
Item
|
|
Inside Ø mm
|
Außen-Ø mm
|
max. Betr.-Druck1 bar
|
Einheit m
|
Price Euro* |
Buy
|
|---|---|---|---|---|---|---|---|
| 340060 |
|
6 | 11 | 20 | 10 | 69.00 | |
| 340061 |
|
6 | 11 | 20 | 20 | 127.00 | |
| 340062 |
|
8 | 13 | 20 | 5 | 50.00 | |
| 340063 |
|
8 | 13 | 20 | 10 | 93.00 | |
| 340064 |
|
10 | 15,5 | 20 | 5 | 54.00 | |
| 340065 |
|
10 | 15,5 | 20 | 10 | 99.00 | |
| 340066 |
|
13 | 19 | 20 | 5 | 71.00 | |
| 340067 |
|
13 | 19 | 20 | 10 | 131.00 | |
| 340068 |
|
16 | 23 | 20 | 5 | 103.00 | |
| 340069 |
|
16 | 23 | 20 | 10 | 195.00 | |
| 340070 |
|
19 | 26,5 | 20 | 5 | 122.00 | |
| 340071 |
|
19 | 26,5 | 20 | 10 | 232.00 | |
| 340072 |
|
25 | 33,5 | 20 | 5 | 172.00 | |
| 340073 |
|
25 | 33,5 | 20 | 10 | 321.00 |
[1] at +20 °C
